HX-2

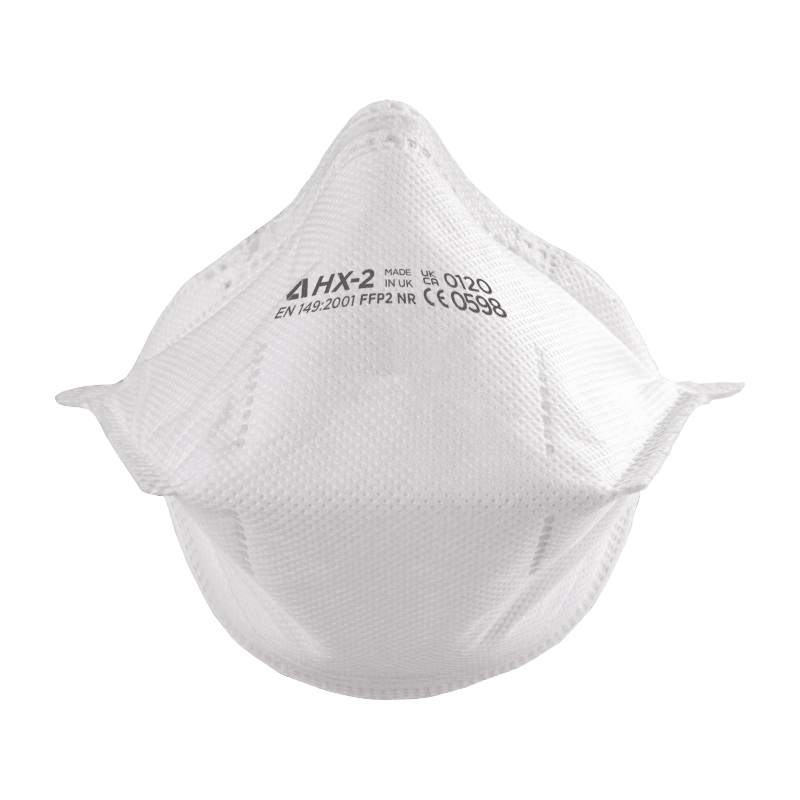

P2 Disposable Fold-Flat Respirator
Product Features
- Lightweight, fold flat respirator
- Flexible nose bridge
- Electrostatic filter media
- Conforms to EN 149:2001+A1:2009 & EN 14683:2019+AC:2019
- FFP2 NR
- Tapered shape for enhanced fit
- Premium quality straps ensure stability on the face
- Non-ferrous nose bridge
- Valve free
- Latex and silicone free
- Available in two size options, (regular - HX and large HXL). Ideal to fit a wide range of face shapes
Certifications
CAT III
Options
Product Resources
Industry
Applications
Emergency Responders
Painting and Finishing
Surgery
Nursing
Labouring
Disease and Infection Control
Laboratory Analysis
Pharmacists
Features
Exceptional Fit
Low Profile Valve
Suitable for Healthcare
Made in the UK
Further Information
The HX-SERIES is a horizontal fold flat disposable respirator designed to offer an excellent fit.
Available Options
| Product Code | Size | Colour | Weight |
|---|---|---|---|
| ASRHX200AF | M |
White /White
|
1.33g |
| ASRHX200AH | L |
White
|
1.33g |
Product Specifics
| Master SKU | ASRHX200 |
|---|---|
| Series | HX |
| Filter Media Material | Non-Woven Textile |
| Inner Cover Material | Polypropylene |
| Headstrap Material | Latex-Free Elastane,Polyester,Textile Elastic |
| Outer Cover Material | Polypropylene |
| Nosefoam Material | Polyethylene Foam |
Certifications
| CE | ✓ |
|---|---|
| Cat Level | III |
| UKCA | ✓ |
| EN 149:2001 + A1:2009 | FFP2 NR |
| EN 14683:2019 | Type IIR |
| EN 136:1998 | Class 1 |
EN 149:2001
| Class | FFP2 |
|---|---|
| Disposable | ✓ |
Options
Selected Option Specifics (ASRHX200AF) (ASRHX200AH)
| SKU | ASRHX200AF |
|---|---|
| Size | M |
| Main Colour |
White
|
| Shelf Life | 5yr |
Selected Option Specifics (ASRHX200AF) (ASRHX200AH)
| SKU | ASRHX200AH |
|---|---|
| Size | L |
| Main Colour |
White
|
| Shelf Life | 5yr |
Storage Conditions
| Minimum Temperature | -5°C |
|---|---|
| Maximum Temperature | 35°C |
| Humidity | <70% |
Unit Dimensions
| Unit Weight | 1.33g |
|---|
Unit Dimensions
| Unit Weight | 1.33g |
|---|
Packaging
| Items per Pack | 20 |
|---|---|
| Items per Case | 1 |
| Case height | 27cm |
| Case width | 32.4cm |
| Case length | 47.7cm |
| Case weight | 3.2kg |
| Units per Pallet | 6720 |
Packaging
| Items per Pack | 20 |
|---|---|
| Items per Case | 1 |
| Case height | 27cm |
| Case width | 32.4cm |
| Case length | 47.7cm |
| Case weight | 3.2kg |
| Units per Pallet | 6720 |
Product Selector Guidance Chart
| Option | Assigned Protection (APF) | Oil/Water Based Particulates | Non-Toxic Dusts | Fine Toxic Dusts/Mists/Fumes | Very Fine Toxic Dusts/Mists/Fumes | Metal Fume |
|---|---|---|---|---|---|---|
| ASRHX200AF | 10 | Recommended | Recommended | Recommended | ||
| ASRHX200AH | 10 | Recommended | Recommended | Recommended |
Parts Dimensions
| Part | Width | Length | Height |
|---|---|---|---|
| Respirator | 96 mm | 224 mm | 4 mm |
| Part | Width | Length | Height |
|---|---|---|---|
| Respirator | 106.56 mm | 234 mm | 4 mm |
Recommendations for Use
USER INSTRUCTIONS:
Use only in accordance with these instructions, as incorrect use could result in danger to
life or health. Fit according to instructions BEFORE entering the contaminated area.
Discard safely after use or replace with a new respirator if:
• Excessive clogging of the respirator causes breathing difficulty or discomfort
• If the respirator becomes damaged
• The respirator has been worn for 8 hours.
Do not use in oxygen deficient, (less than 19%), explosive atmospheres or confined
spaces where gases or aerosols may accumulate and the concentration of contaminant
is immediately dangerous to life or health, (over the IDLH value).
Leave the contaminated area if:
• The respirator is damaged
• You become dizzy or have difficulty breathing
• You become irritated or other distress occurs
• You become uncertain of the nature and/or concentration of contaminant.
WARNING:
• As facial hair reduces the protection offered it is recommended that these respirators
are used by clean shaven personnel only
• Do not use for protection against gases
• Single shift use only
• Do not remove whilst in contaminated area.
Recommendations for Use
USER INSTRUCTIONS:
Use only in accordance with these instructions, as incorrect use could result in danger to
life or health. Fit according to instructions BEFORE entering the contaminated area.
Discard safely after use or replace with a new respirator if:
• Excessive clogging of the respirator causes breathing difficulty or discomfort
• If the respirator becomes damaged
• The respirator has been worn for 8 hours.
Do not use in oxygen deficient, (less than 19%), explosive atmospheres or confined
spaces where gases or aerosols may accumulate and the concentration of contaminant
is immediately dangerous to life or health, (over the IDLH value).
Leave the contaminated area if:
• The respirator is damaged
• You become dizzy or have difficulty breathing
• You become irritated or other distress occurs
• You become uncertain of the nature and/or concentration of contaminant.
WARNING:
• As facial hair reduces the protection offered it is recommended that these respirators
are used by clean shaven personnel only
• Do not use for protection against gases
• Single shift use only
• Do not remove whilst in contaminated area.
EC Compliance
Economic Operator [EU]: Globus EMEA Ltd., 51 Dawson Street, Dublin, D02 AN25, Ireland.
Product conforms to the requirement of: UK Regulation 2016/425 on PPE, brought into UK Law and amended & Regulation (EU) 2016/425 of the European Parliament and of the Council as Personal Protective Equipment (PPE).
Type-Examination, (Module B), Certificates issued by:
UK - CCQS UK Ltd., Level 2, 5 Harbour Exchange Square, London, E14 9GE, UK. [A.B. No. 1105].
EU - CCQS Certification Services Ltd., Block 1 Blanchardstown Corporate Park, Ballycoolin Road, Blanchardstown, Dublin D155 AKK1, Ireland. [N.B. No. 2834].
PPE is subject to the conformity assessment procedure, conformity to type based on Quality Assurances of the production process, (Module D), under the surveillance of the Approved/Notified Body(ies):
UK - SGS UK Ltd., Rossmore Business Park, Ellesmere Port, Cheshire, CH65 3EN, UK. [A.B. No. 0120].
EU - SGS Fimko Oy, Takomtie 8, FI-00380, Helsinki, Finland. [N.B. No. 0598].
