Riley Retna
Ultra-Lightweight Single Lens Safety Eyewear
Product Features
- Ultra-lightweight
- Single wide vision lens gives exceptional field of vision
- Lateral protection
- Uniquely flexible sidearms
- Supplied with a microfibre storage pouch
- Weight: 21g
- 9-Base lens
Certifications
Options
Lens Colour
Clear
Amber
Indoor/Outdoor
Blue
Product Resources
Applications
Component and Product Assembly
Vehicle Repairs and Maintenance
Woodwork and Fabrication
General Maintenance
Features
Tempflex
Ultra Lightweight
Panoramic Vision
Further Information
The single wide-vision lens featured in RETNA™ provides the wearer with an exceptional field of vision. Lateral protection and a unique, flexible sidearm provide unrivalled comfort and grip. Weighing 21g, RETNA™ also helps to minimise visual fatigue.
Available Options
Lens Type | Product Code | Lens Marking | Frame Marking | Protects Against | Coatings | |
---|---|---|---|---|---|---|

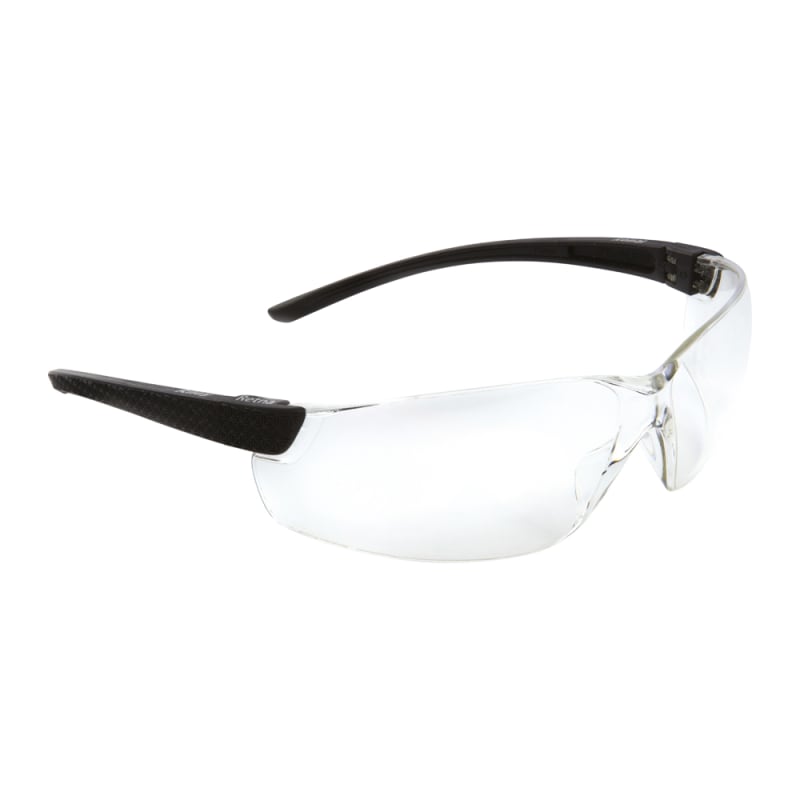

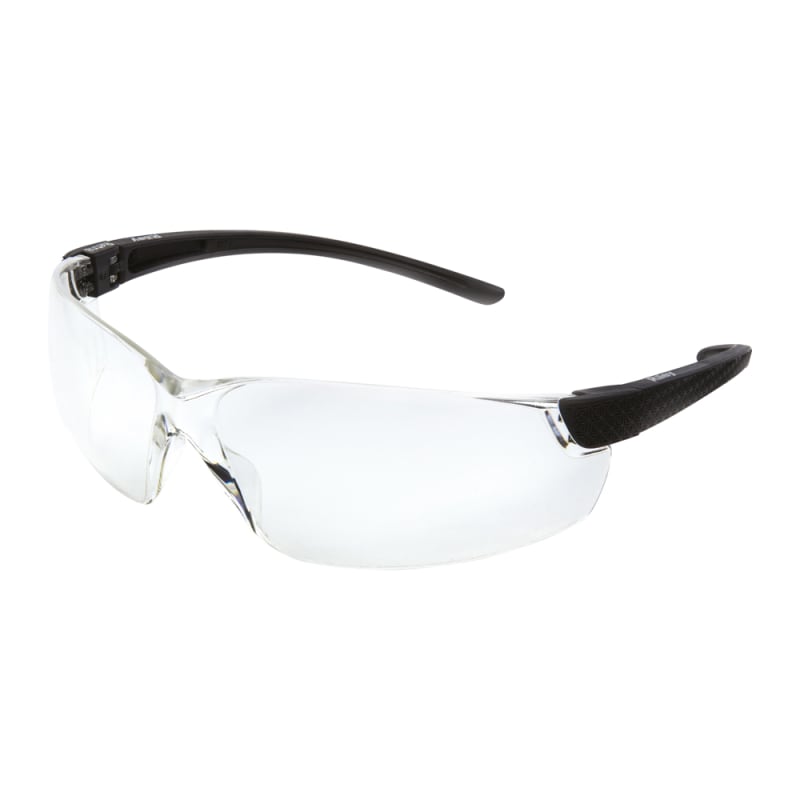

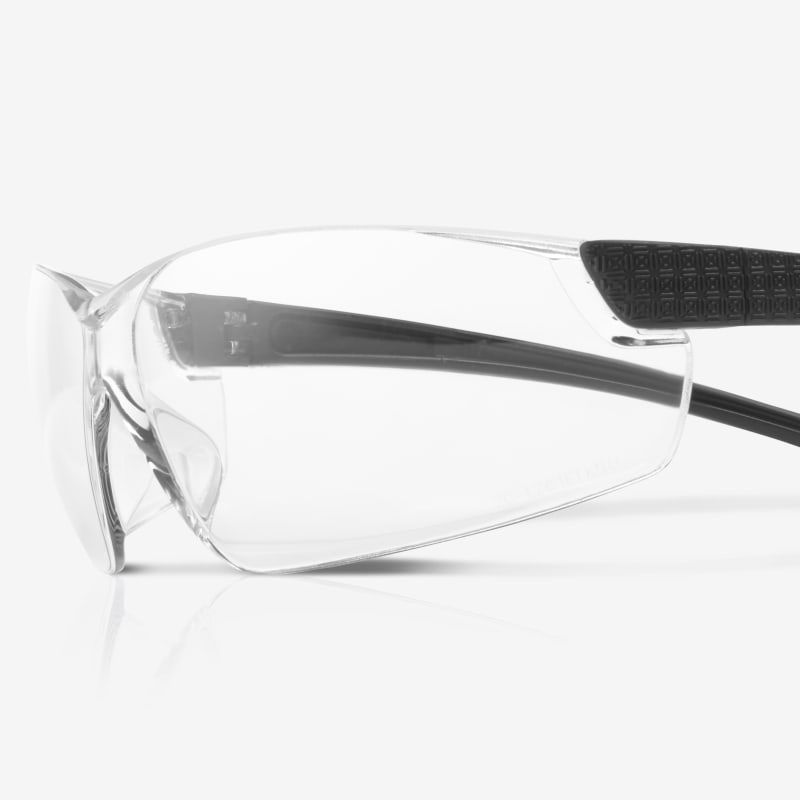

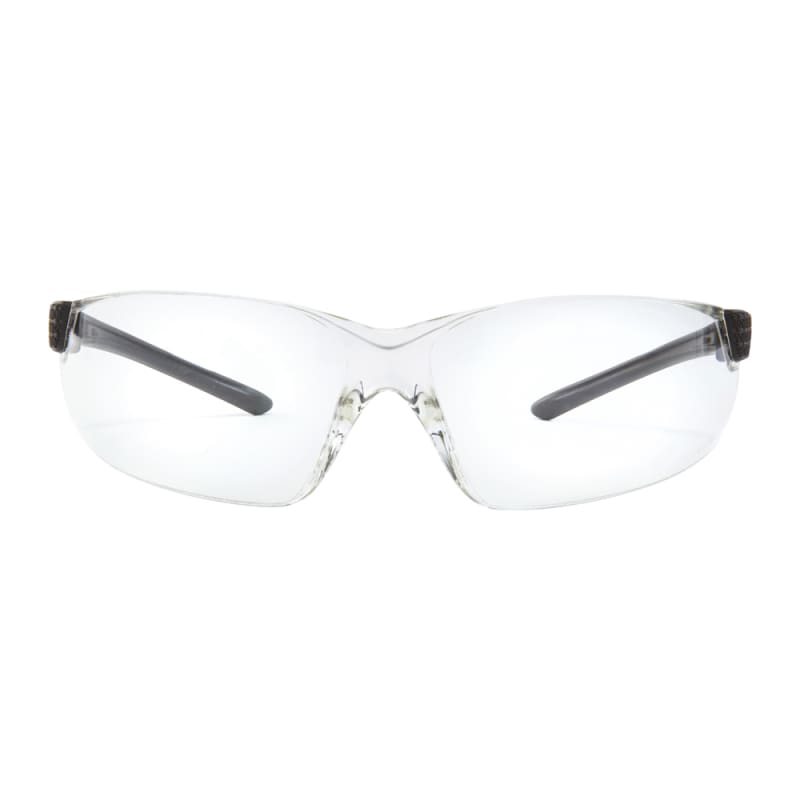

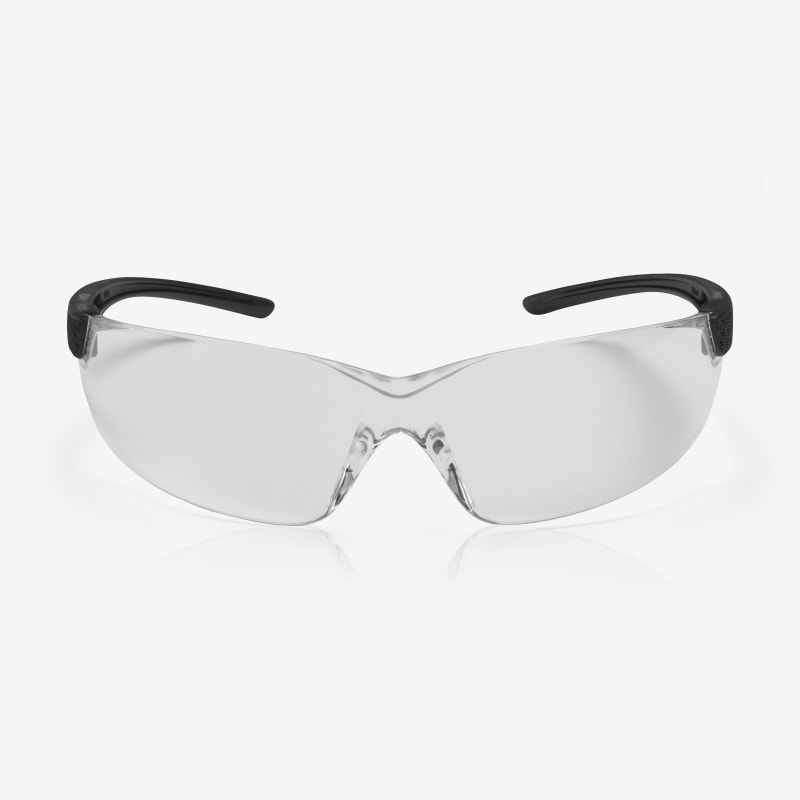

Clear
|
RLY00091 | 2C-1.2 R 1 FT KN CE | R 166 FT CE UKCA |
Impacts UV Radiation |
Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
|

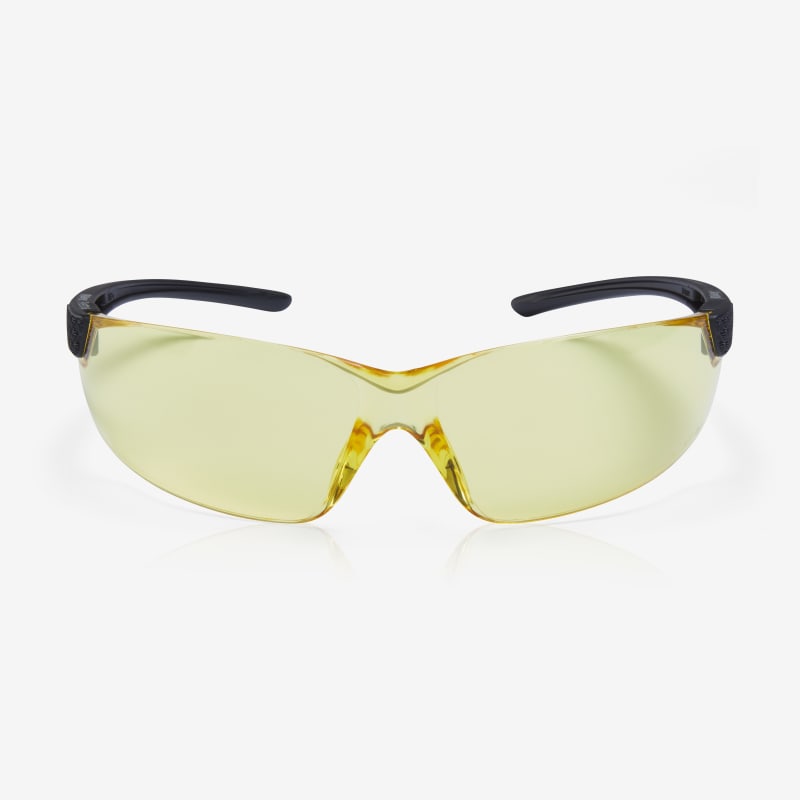

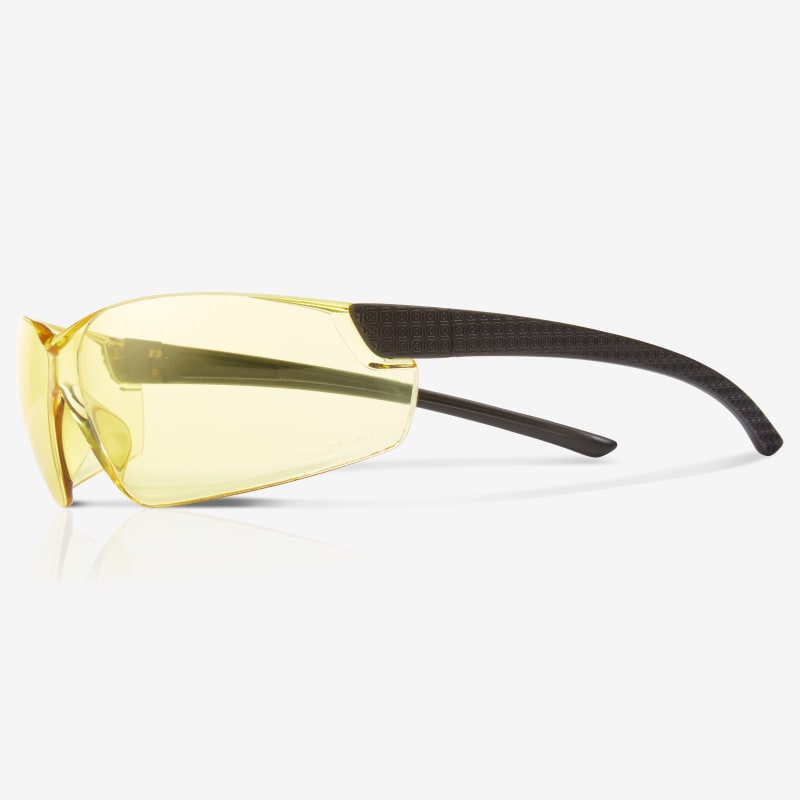

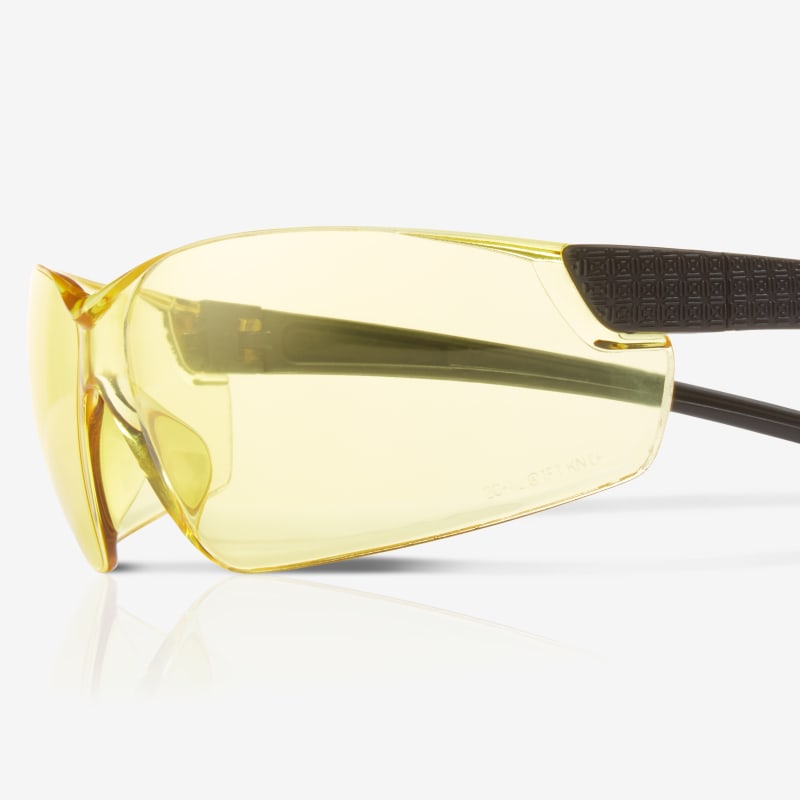

Amber
|
RLY00093 | 2C-1.2 R 1 FT KN CE | R 166 FT CE UKCA |
Impacts UV Radiation |
Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
|

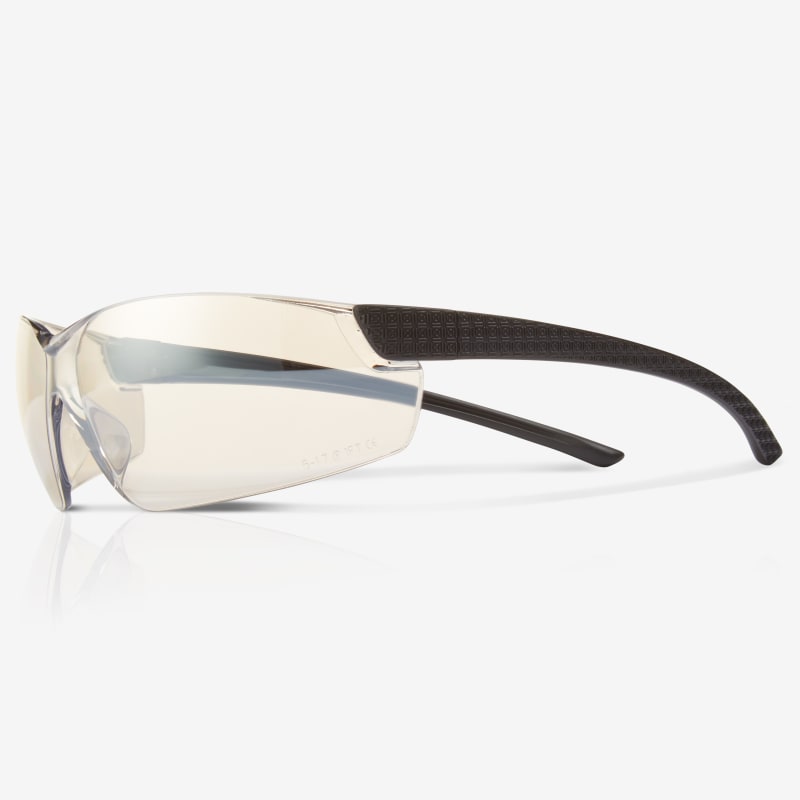

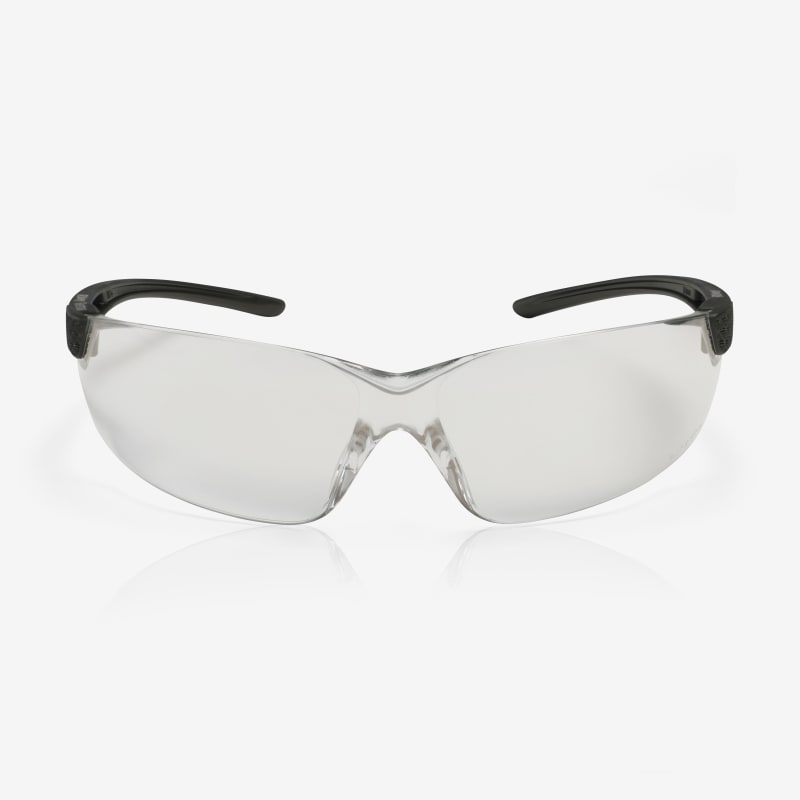

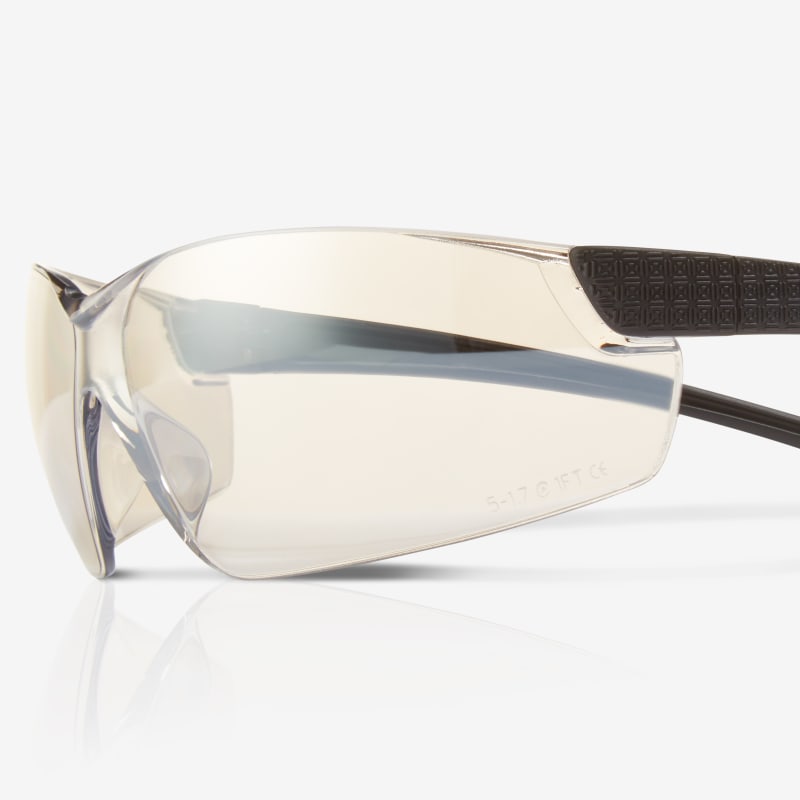

Indoor/Outdoor
|
RLY00094 | 5-1.7 R 1 FT CE | R 166 FT CE UKCA |
Impacts UV Radiation |
Arida 400 - Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
|

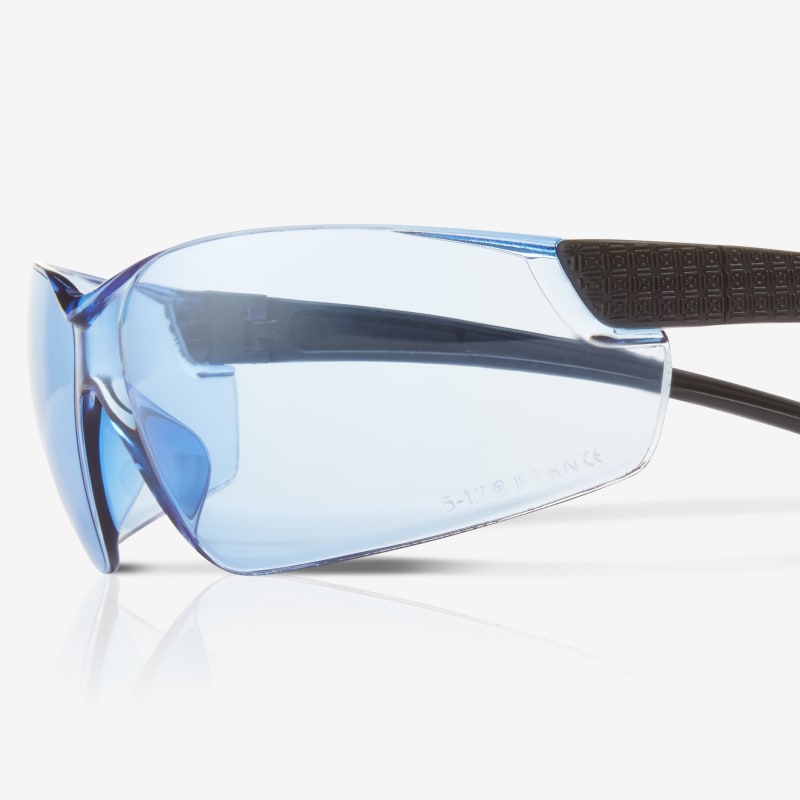

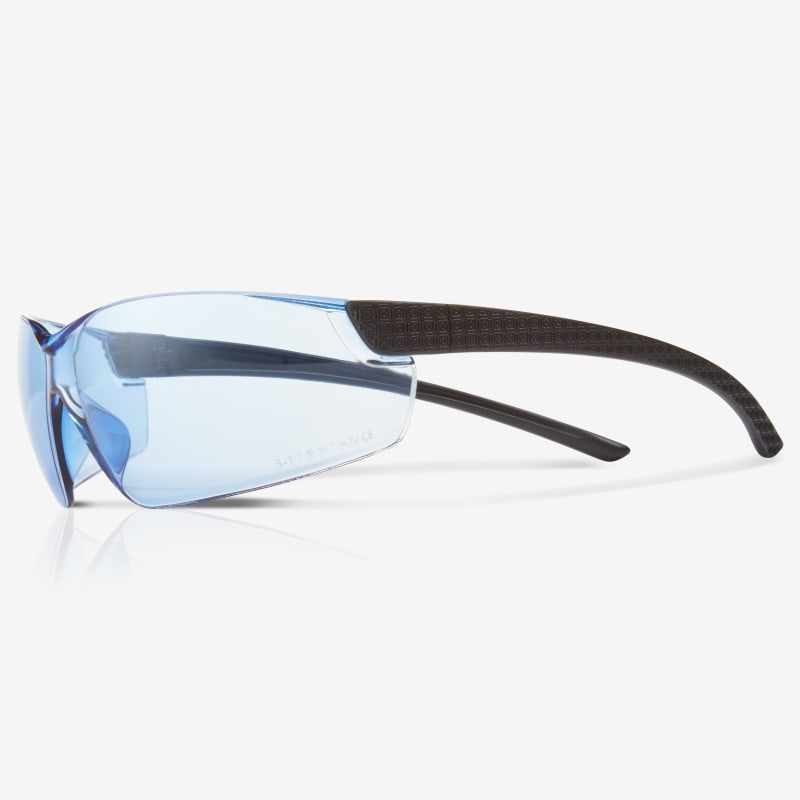

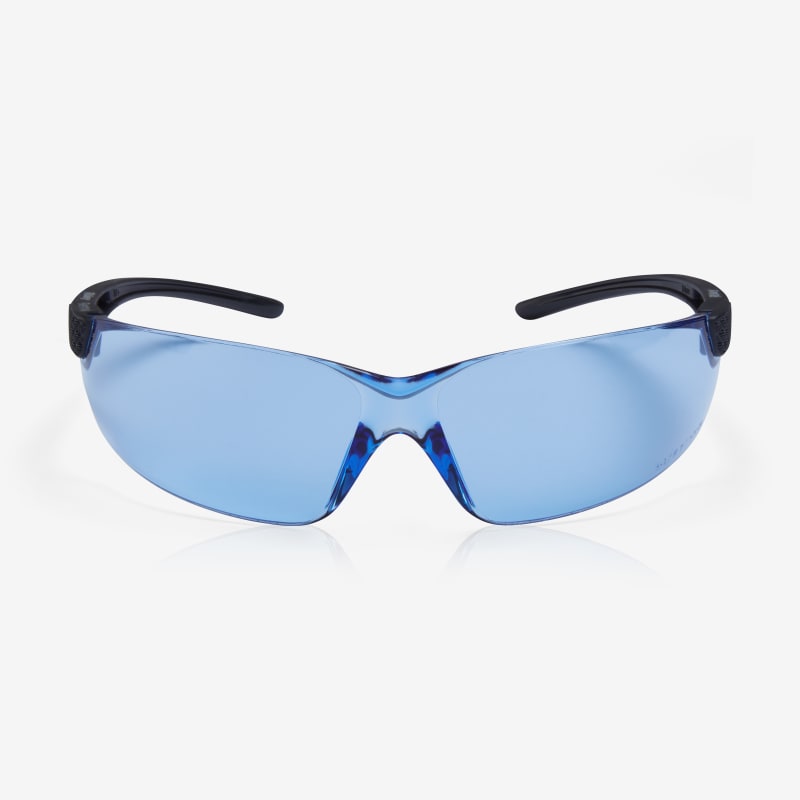

Blue
|
RLY00095 | 5-1.7 R 1 FT KN CE | R 166 FT CE UKCA |
Impacts UV Radiation |
Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
Product Specifics
SKU | RLY0009 |
---|---|
Lens material | Polycarbonate |
Temple Material | Thermoplastic TR90 |
Hinge Material | Thermoplastic TR90, Metal |
CE | ✓ |
EN 166 | ✓ |
UKCA | ✓ |
Options
Selected Option Specifics (RLY00091) (RLY00093) (RLY00094) (RLY00095)
Lens Colour |
Clear
|
---|---|
Frame colour |
Black
|
Lens base | 9mm |
Protects Against | Impacts UV Radiation |
Lens coating | Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
Lens Marking | 2C-1.2 R 1 FT KN CE |
Frame Marking | R 166 FT CE UKCA |
Lens Colour |
Amber
|
---|---|
Frame colour |
Black
|
Lens base | 9mm |
Protects Against | Impacts UV Radiation |
Lens coating | Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
Lens Marking | 2C-1.2 R 1 FT KN CE |
Frame Marking | R 166 FT CE UKCA |
Lens Colour |
Indoor/Outdoor
|
---|---|
Frame colour |
Black
|
Lens base | 9mm |
Protects Against | Impacts UV Radiation |
Lens coating | Arida 400 - Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
Lens Marking | 5-1.7 R 1 FT CE |
Frame Marking | R 166 FT CE UKCA |
Lens Colour |
Blue
|
---|---|
Frame colour |
Black
|
Lens base | 9mm |
Protects Against | Impacts UV Radiation |
Lens coating | Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
Lens Marking | 5-1.7 R 1 FT KN CE |
Frame Marking | R 166 FT CE UKCA |
Unit Dimensions
Unit Weight | 61g |
---|---|
Unit Width | 80mm |
Unit Length | 150mm |
Unit Height | 60mm |
Unit Dimensions
Unit Weight | 60g |
---|---|
Unit Width | 80mm |
Unit Length | 150mm |
Unit Height | 60mm |
Unit Dimensions
Unit Weight | 54g |
---|---|
Unit Width | 80mm |
Unit Length | 150mm |
Unit Height | 60mm |
Unit Dimensions
Unit Weight | 54g |
---|---|
Unit Width | 80mm |
Unit Length | 150mm |
Unit Height | 60mm |
Packaging
Items per Pack | 10 |
---|---|
Items per Case | 200 |
Case height | 85cm |
Case width | 31cm |
Case length | 47cm |
Case weight | 15.6kg |
Packs per Carton | 10 |
Packaging Information | 20 boxes of 10 |
Card/Paper Weight | 6.7g |
---|---|
Plastic Weight | 1g |
Recycled Plastic Content | 30% |
Packaging
Items per Pack | 10 |
---|---|
Items per Case | 200 |
Case height | 85cm |
Case width | 31cm |
Case length | 47cm |
Case weight | 15.6kg |
Packs per Carton | 10 |
Packaging Information | 20 boxes of 10 |
Card/Paper Weight | 6.7g |
---|---|
Plastic Weight | 1g |
Recycled Plastic Content | 30% |
Packaging
Items per Pack | 10 |
---|---|
Items per Case | 200 |
Case height | 85cm |
Case width | 31cm |
Case length | 47cm |
Case weight | 15.6kg |
Packs per Carton | 10 |
Packaging Information | 20 boxes of 10 |
Card/Paper Weight | 6.7g |
---|---|
Plastic Weight | 1g |
Recycled Plastic Content | 30% |
Packaging
Items per Pack | 10 |
---|---|
Items per Case | 200 |
Case height | 85cm |
Case width | 31cm |
Case length | 47cm |
Case weight | 15.6kg |
Packs per Carton | 10 |
Packaging Information | 20 boxes of 10 |
Card/Paper Weight | 6.7g |
---|---|
Plastic Weight | 1g |
Recycled Plastic Content | 30% |
EN 166
SKU | Lens Colour | Filter | Tint | Manufacturer Identifier | Optical Class | Mechanical Strength | Additional Markings | Frame Mechanical Strength |
---|---|---|---|---|---|---|---|---|
RLY00091 |
Clear
|
2C UV w/ colour | 1.2 Clear or Amber | 1 For Continuous Work |
F Low-energy Impact T Extreme temperatures |
K Resistance to Scratching N Resistance to Fogging |
F Low-energy Impact T Extreme temperatures |
|
RLY00093 |
Amber
|
2C UV w/ colour | 1.2 Clear or Amber | 1 For Continuous Work |
F Low-energy Impact T Extreme temperatures |
K Resistance to Scratching N Resistance to Fogging |
F Low-energy Impact T Extreme temperatures |
|
RLY00094 |
Indoor/Outdoor
|
5 Solar filter | 1.7 Minimises or I/O | 1 For Continuous Work |
F Low-energy Impact T Extreme temperatures |
F Low-energy Impact T Extreme temperatures |
||
RLY00095 |
Blue
|
5 Solar filter | 1.7 Minimises or I/O | 1 For Continuous Work |
F Low-energy Impact T Extreme temperatures |
K Resistance to Scratching N Resistance to Fogging |
F Low-energy Impact T Extreme temperatures |
Cleaning
The lenses should be cleaned regularly.
Storage
All products must be stored in a dry and clean environment. After each use it is recommended to keep the spectacles or goggles in a microfibre pouch or rigid case.
Disposal
Pitted, scratched or damaged lenses must be replaced by replacing the complete product. If the frame is damaged also replace the complete product.
