RILEY Velia

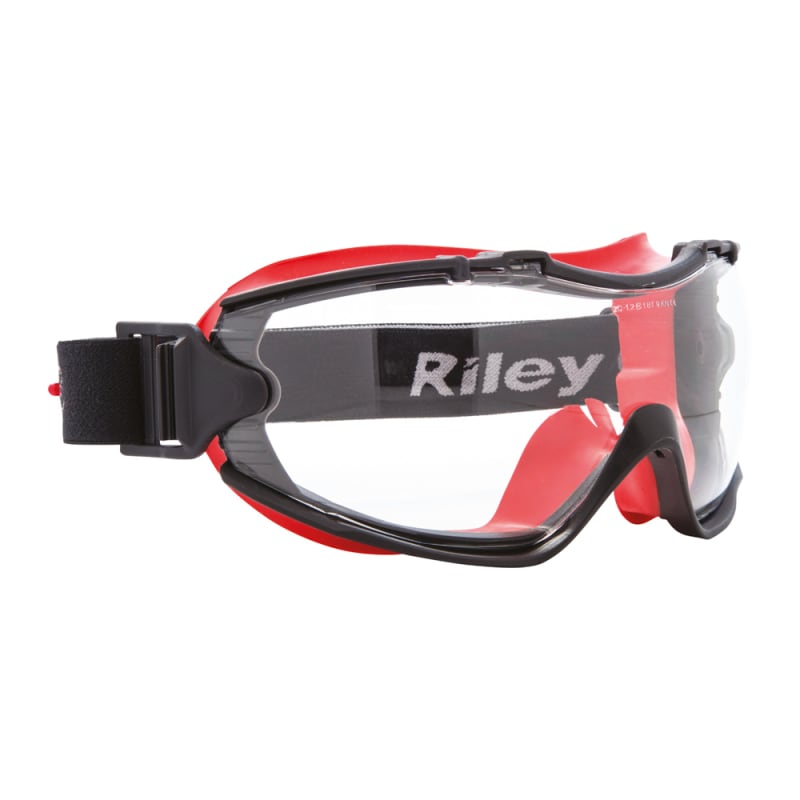

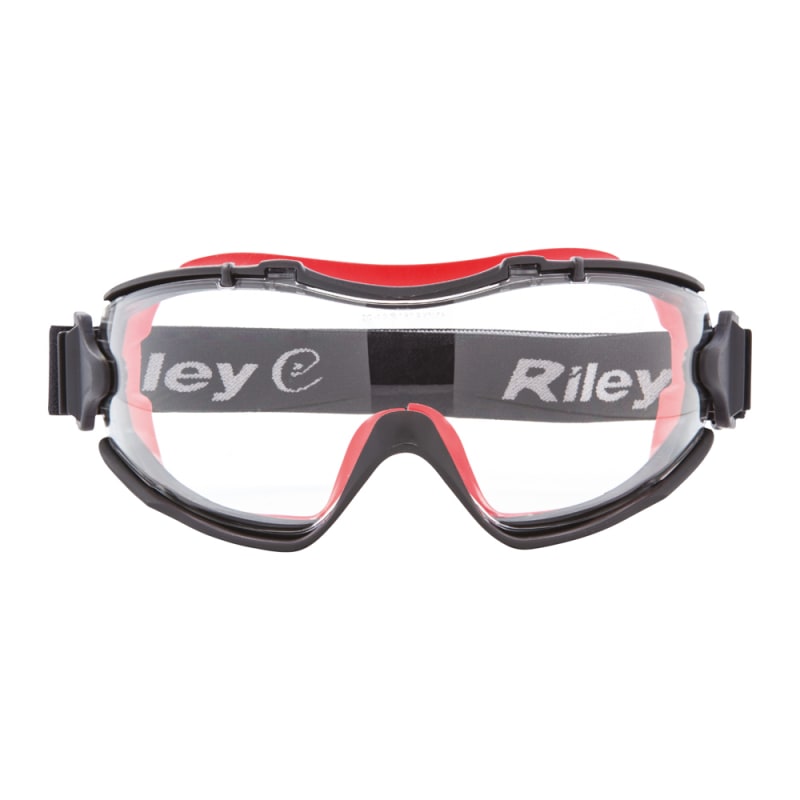

Wide fov safety goggle with impact resistant lens
Product Features
- Strong polycarbonate lens with a wide field of vision
- Padded face seal
- Indirect ventilation
- Soft PVC/TPE frame and comfort fit nose bridge
- Quick release head strap buckle for ease of fitting when wearing a helmet
- Adjustable, pivoted elasticated head strap
- Molten metal splash protection
- Can be worn over a prescription frame
- Ophthalmic adapter available with prescription lenses (ordered separately)
- Weight: 84g
Certifications
Options
Lens Colour
Clear
Shade 3
Shade 5
Product Resources
Applications
Vehicle Repairs and Maintenance
Commercial Cleaning
Gardening
Woodwork and Fabrication
General Maintenance
Glass and Glazing
Laboratory Analysis
Features
Panoramic Vision
Padded Seal
Further Information
VELIA™ is a safety goggle containing a clear polycarbonate wraparound lens offering 180° field of vision. The pivoting head strap and soft, padded seal allows for a comfortable fit.
Available Options
| Lens Type | Frame Colour | Product Code | Lens Marking | Frame Marking | Protects Against | Coatings | |
|---|---|---|---|---|---|---|---|
|
Clear
|
Black /Red
|
RLY00221 |
2C-1.2 R 1 BT 9KN CE Z87+ U6 |
R 166 FT CE UKCA Z87+ |
Impacts Liquid Droplets Molten Metal Airborne Particles |
Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
|
|
Shade 3
|
Black
|
RLY00222 |
3 R 1 BT 9KN CE Z87+ W3 R I3 |
R 166 FT CE UKCA Z87+ |
Impacts Liquid Droplets Molten Metal Airborne Particles |
Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
|
|
Shade 5
|
Black
|
RLY00223 |
5 R 1 BT 9KN CE Z87+ W3 |
R 166 FT CE UKCA Z87+ |
Impacts Liquid Droplets Molten Metal Airborne Particles |
Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
Product Specifics
| SKU | RLY0022 |
|---|---|
| Series | Velia |
| Frame material | Thermoplastic TR90,Thermoplastic Elastomers (TPE) |
| Lens material | Polycarbonate |
| Attachment Material | Thermoplastic TR90 |
| CE | ✓ |
| EN 166 | ✓ |
| UKCA | ✓ |
| Inner Face Seal | ✓ |
| Headband Material | Elastic |
Options
Selected Option Specifics (RLY00221) (RLY00222) (RLY00223)
| Lens Colour |
Clear
|
|---|---|
| Frame colour |
Black /Red
|
| Lens base | 6mm |
| Protects Against | Impacts Liquid Droplets Molten Metal Airborne Particles |
| Lens coating | Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
| Lens Marking | 2C-1.2 R 1 BT 9KN CE / Z87+ U6 |
| Frame Marking | R 166 FT CE UKCA Z87+ |
| Lens Colour |
Shade 3
|
|---|---|
| Frame colour |
Black
|
| Lens base | 6mm |
| Protects Against | Impacts Liquid Droplets Molten Metal Airborne Particles |
| Lens coating | Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
| Lens Marking | 3 R 1 BT 9KN CE / Z87+ W3 / R I3 |
| Frame Marking | R 166 FT CE UKCA Z87+ |
| Lens Colour |
Shade 5
|
|---|---|
| Frame colour |
Black
|
| Lens base | 6mm |
| Protects Against | Impacts Liquid Droplets Molten Metal Airborne Particles |
| Lens coating | Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
| Lens Marking | 5 R 1 BT 9KN CE / Z87+ W3 |
| Frame Marking | R 166 FT CE UKCA Z87+ |
Unit Dimensions
| Unit Weight | 94g |
|---|---|
| Unit Width | 80mm |
| Unit Length | 150mm |
| Unit Height | 60mm |
Unit Dimensions
| Unit Weight | 70g |
|---|---|
| Unit Width | 80mm |
| Unit Length | 150mm |
| Unit Height | 60mm |
Unit Dimensions
| Unit Weight | 73.2g |
|---|---|
| Unit Width | 80mm |
| Unit Length | 150mm |
| Unit Height | 60mm |
Packaging
| Items per Pack | 5 |
|---|---|
| Items per Case | 100 |
| Case height | 47cm |
| Case width | 31cm |
| Case length | 85cm |
| Case weight | 14.64kg |
| Packs per Carton | 10 |
| Packaging Information | 20 boxes of 5 |
| Card/Paper Weight | 6.7g |
|---|---|
| Plastic Weight | 1g |
Packaging
| Items per Pack | 5 |
|---|---|
| Items per Case | 100 |
| Case height | 47cm |
| Case width | 31cm |
| Case length | 85cm |
| Case weight | 14.64kg |
| Packaging Information | 20 boxes of 5 |
| Card/Paper Weight | 6.7g |
|---|---|
| Plastic Weight | 1g |
Packaging
| Items per Pack | 5 |
|---|---|
| Items per Case | 100 |
| Case height | 47cm |
| Case width | 31cm |
| Case length | 85cm |
| Case weight | 14.64kg |
| Packaging Information | 20 boxes of 5 |
| Card/Paper Weight | 6.7g |
|---|---|
| Plastic Weight | 1g |
EN 166
| SKU | Lens Colour | Filter | Tint | Manufacturer Identifier | Optical Class | Mechanical Strength | Additional Markings | Frame Mechanical Strength |
|---|---|---|---|---|---|---|---|---|
| RLY00221 |
Clear
|
2C UV w/ colour | 1.2 Clear or Amber | 1 For Continuous Work |
B Medium-energy Impact T Extreme temperatures |
9 Molten Metal and Hot Solids K Resistance to Scratching N Resistance to Fogging |
F Low-energy Impact T Extreme temperatures |
|
| RLY00222 |
Shade 3
|
3 UV w/ colour | 1 For Continuous Work |
B Medium-energy Impact T Extreme temperatures |
9 Molten Metal and Hot Solids K Resistance to Scratching N Resistance to Fogging |
F Low-energy Impact T Extreme temperatures |
||
| RLY00223 |
Shade 5
|
5 Solar filter | 1 For Continuous Work |
B Medium-energy Impact T Extreme temperatures |
9 Molten Metal and Hot Solids K Resistance to Scratching N Resistance to Fogging |
F Low-energy Impact T Extreme temperatures |
ANSI/ISEA Z87.1
| SKU | Lens Colour | Impact Rating | Welding Protection | UV Light Rating | |
|---|---|---|---|---|---|
| RLY00221 |
Clear
|
Z87+ High Velocity Impact |
|
U6 | |
| RLY00222 |
Shade 3
|
Z87+ High Velocity Impact |
|
||
| RLY00223 |
Shade 5
|
Z87+ High Velocity Impact |
|
AS/NZS 1337.1:2010
| SKU | Lens Colour | Impact Rating | Ocular Category |
|---|---|---|---|
| RLY00221 |
Clear
|
||
| RLY00222 |
Shade 3
|
I Increased Robustness |
|
| RLY00223 |
Shade 5
|
Cleaning
The lenses should be cleaned regularly.
Storage
All products must be stored in a dry and clean environment. After each use it is recommended to keep the spectacles or goggles in a microfibre pouch or rigid case.
Disposal
Pitted, scratched or damaged lenses must be replaced by replacing the complete product. If the frame is damaged also replace the complete product.
