S-3V

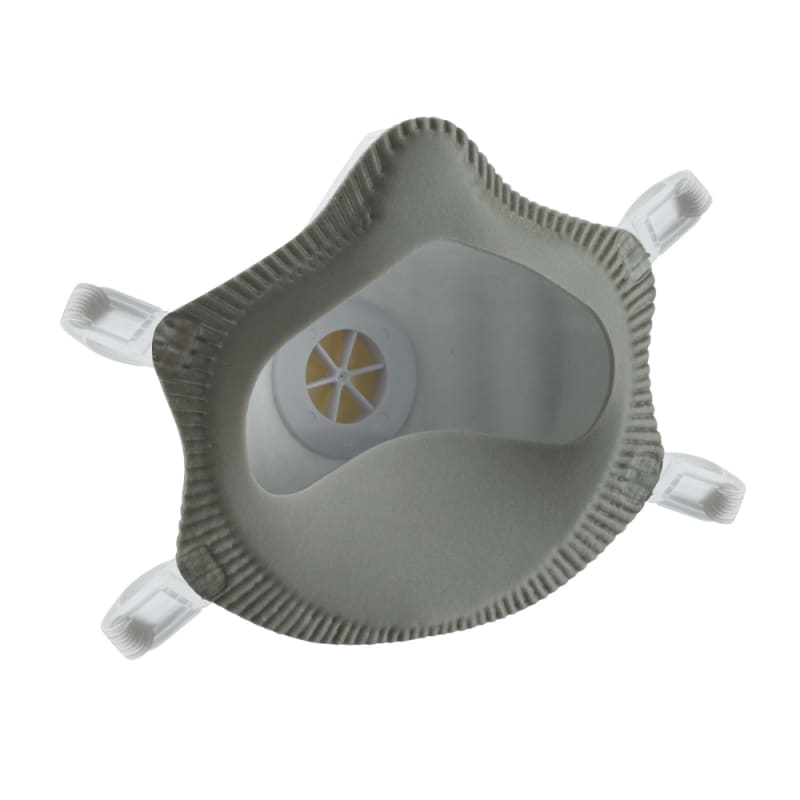

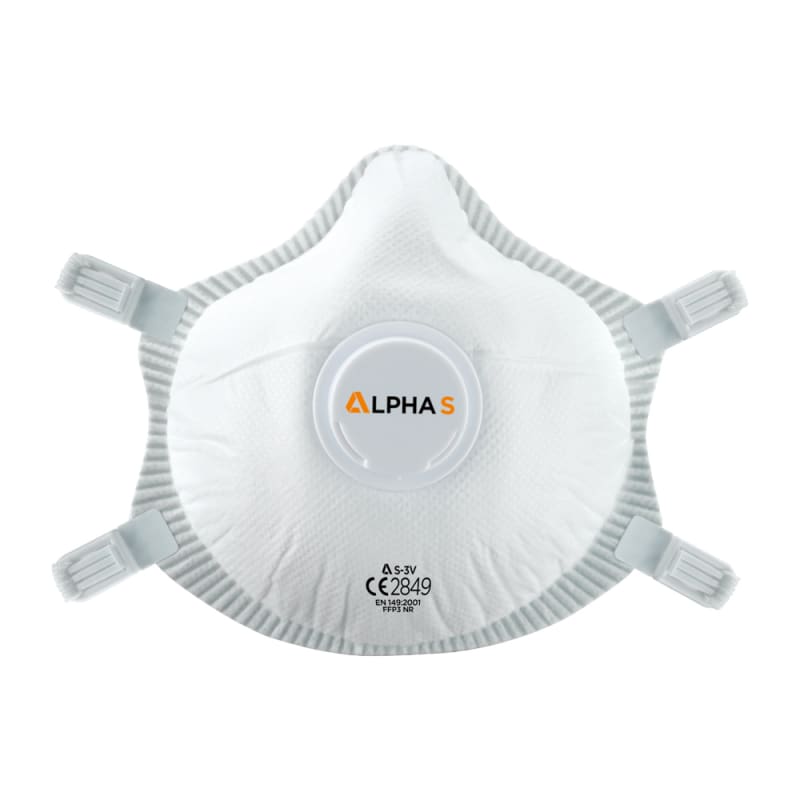

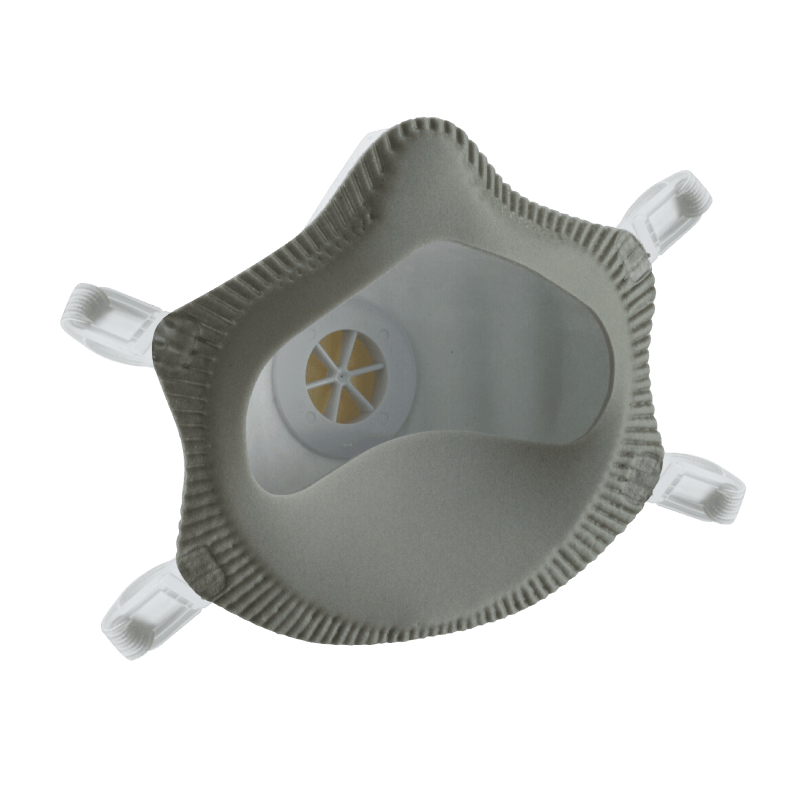

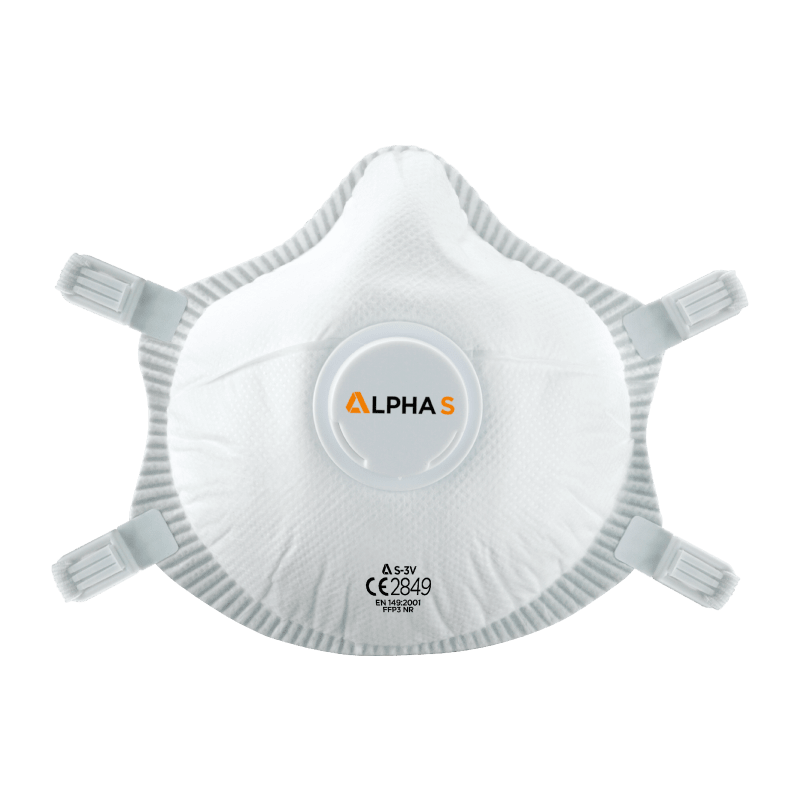

Pre-Formed Cup Shape Respirator
Product Features
- Designed to solve an industry wide problem - high performance respiratory protection for the smaller face
- Unique full inner face seal
- Preformed nosebridge removes the need for regular adjustment
- Four point headstrap adjustment
- Conforms to EN 149:2001+A1:2009 FFP3 NR
Certifications
Options
Product Resources
Applications
Craft and Hobbies
Gardening
Metal Fabrication Work
Disease and Infection Control
Woodwork and Fabrication
Features
4 Point Headstrap Adjustment
Preformed Nose Bridge
Suits a variety of face shapes
Unique Inner Face Seal
Individually Bagged
Further Information
The Alpha S has been specifically designed to ensure an excellent fit for the smaller face. The unique inner face seal helps maintain a close and snug fit around the chin area which is generally regarded by experienced fit testers to be the main weakness on standard design disposable respirators.
Available Options
| Product Code | Colour | Weight |
|---|---|---|
| MMSS/ALP/S3V |
White
|
4.7g |
Product Specifics
| Master SKU | MMSS/ALP/S3 |
|---|---|
| Series | Alpha S |
| Filter Media Material | Melt Blown Polypropylene |
| Inner Cover Material | Polypropylene |
| Headstrap Material | Woven Elastic |
| Headstrap Adjuster Material | Polypropylene |
| Scrim Material | Polyester |
| Outer Scrim Material | Polypropylene |
| Inner Scrim Material | Polypropylene |
| Valved | ✓ |
| Valve Cover Material | Polypropylene |
| Valve Diaphragm Material | Synthetic Rubber |
Certifications
| CE | ✓ |
|---|---|
| EN 149:2001 + A1:2009 | FFP3 NR |
EN 149:2001
| Class | FFP3 |
|---|---|
| Disposable | ✓ |
Options
Selected Option Specifics (MMSS/ALP/S3V)
| SKU | MMSS/ALP/S3V |
|---|---|
| Main Colour |
White
|
Unit Dimensions
| Unit Weight | 4.7g |
|---|
Packaging
| Items per Pack | 5 |
|---|---|
| Items per Case | 100 |
| Case height | 32cm |
| Case width | 32cm |
| Case length | 69cm |
| Case weight | 5.5kg |
| Packs per Carton | 20 |
Parts Dimensions
| Part | Width | Length | Height |
|---|---|---|---|
| Exhalation Valve | 40 mm | 40 mm | 11 mm |
| Headband Clip | 12 mm | 29 mm | 4 mm |
| Headband | 9 mm | 350 mm | 0.4 mm |
| Nosebridge | 40 in | 35 in | 30 in |
| Respirator | 50 mm | 130 mm | 130 mm |
Recommendations for Use
This respirator is disposable and recommended for single shift use only. Do not attempt to clean or re-use.
EC Compliance
EU Certification according to Regulation (EU) 2016/425 issued by: BSI Group, Kitemark Court, Davy Avenue, Knowlhill, Milton Keynes, MK5 8PP, United Kingdom. [N.B. No.0086].
Notified Body CE
0086 | BSI Assurance UK Ltd - Kitemark Court Davy Avenue Knowlhill, Milton Keynes MK5 8PP, United Kingdom
