Sota L1
Low Attenuation Ear Defender
Product Features
- SNR23
- Low profile cup design
- Large ear cushions allow freedom to fit majority of ears for a comfortable fit
- Padded, durable headband provides lasting comfort
- Very low attenuation ideal for protection at the first action level
- Blue in colour making them ideal for food environment
- Approved to EN352-1: 2002
Certifications
CAT III
Product Resources
Applications
Machinery and Plant Operation
Highway Repairs and Maintenance
Masonry and Brickwork
Craft and Hobbies
Food Preparation and Handling
Drilling and Boring
Infrastructure Engineering
Fossil Fuel Extraction and Refining
General Maintenance
Metal Forging and Processing
Features
Adjustable Padded Headband
Fits Any Ear
Padded Headband
Further Information

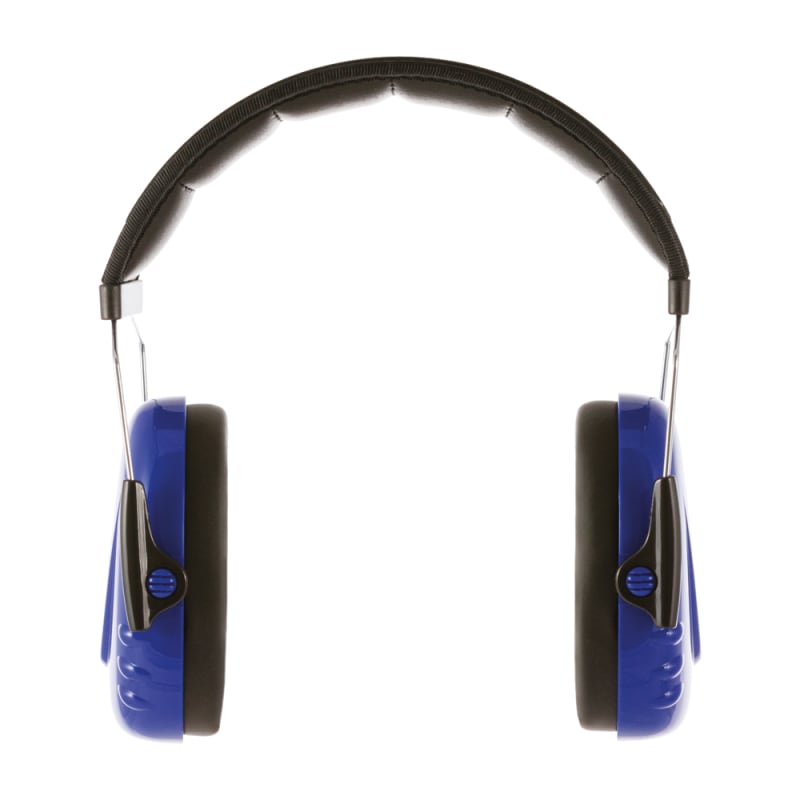

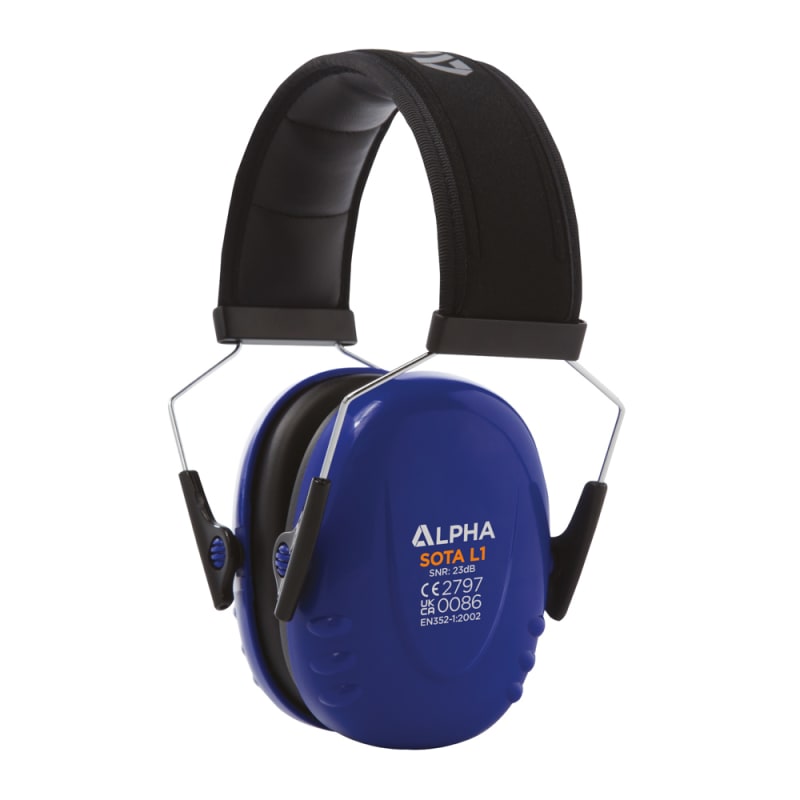

A low profile, lightweight ear defender with low attenuation, ideal for protection between 80-85dB. The L1 model features soft ear cushions and a flexible padded headband. Fully adjustable to provide a comfortable fit for most head sizes.
Product Specifics
| SKU | HME/ALP/SOTAL |
|---|---|
| Primary colour |
Blue
|
| Primary colour |
Black
|
| Headband Cushion Material | Foam covered with PVC cloth & woven cloth |
| Headband Connector Material | ABS |
| Wire Material | Chrome-plated Steel |
| Ring Material | ABS |
| Clip Material | ABS |
| Cup Material | ABS, Foam |
| Cup Cushion | PVC, Foam |
| Headband / Arms Material | Headband |
| Reusable | ✓ |
SNR
| Overall | 23dB |
|---|---|
| High | 30dB |
| Medium | 20dB |
| Low | 13dB |
Certifications
| EN 352-1:2002 | ✓ |
|---|---|
| EN 352-3:2020 | ✓ |
Packaging
| Items per Case | 20 |
|---|---|
| Case height | 31cm |
| Case width | 58cm |
| Case length | 42cm |
| Case weight | 5.62kg |
Unit Dimensions
| Unit Weight | 2.81g |
|---|
Certifications
| CE | ✓ |
|---|---|
| Cat Level | III |
| UKCA | ✓ |
Frequencies Protection
| Frequency (HZ) | 125hz (Hz) | 250hz (Hz) | 500hz (Hz) | 1000hz (Hz) | 2000hz (Hz) | 4000hz (Hz) | 8000hz (Hz) |
|---|---|---|---|---|---|---|---|
| Mean Attenuation | 13 | 12.1 | 20.5 | 29.5 | 34.5 | 37.7 | 33.8 |
| Standard Deviation | 3.4 | 2.8 | 2.8 | 3.9 | 3.3 | 3 | 3.7 |
| Assumed Protection | 9.6 | 9.3 | 17.7 | 25.6 | 31.2 | 34.7 | 30.1 |
Recommendations for Use
Refer to manufacturer instructions before wear. Cup type ear defenders and especially the ear cushions can wear by even normal use and should be frequently inspected for signs of and cracks. Replace the ear cushions if necessary but at least every 6 months. The old sealing pads can be pulled off and the replacements carefully attached to the ear cups in the correct position. The cup foam inlays also should be replaced on a regular basis. (recommended every 6 months). The headband should not be bent or adjusted if not necessary in order to provide the tension required for the optimal performance of the hearing protector.
Cleaning
This product can be adversely affected by certain chemical substances
Additional information should be obtained by the manufacturer
Please do not clean with any chemicals
The ear defenders can be cleaned using a cloth which has been moistened using warm soap water
Allow to dry before reuse
Do not use any abrasive brushes or other materials which could damage the insulating lining or seals
Do not immerse the ear defenders in water
Only use cleaning agents which do not adversley affect the user
Storage
Before use, always keep the ear defender in its original packaging and in a dry, clean, uncontaminated environment. To avoid potential damage, ensure the earpiece pads are not pressed together during storage.
EC Compliance
EU Certification according to Regulation (EU) 2016/425 issued by: SATRA Technology Europe Limited, Bracetown Business Park, Clonee D15 YN2P, Republic of Ireland. [N.B. No.2777].
Notified Body CE
2777 | Satra Technology Europe Ltd - Bracetown Business Park, Clonee, Dublin 15, Dublin, Ireland
Notified Body UKCA
0086 | BSI Assurance UK Ltd - Kitemark Court Davy Avenue Knowlhill, Milton Keynes MK5 8PP, United Kingdom
