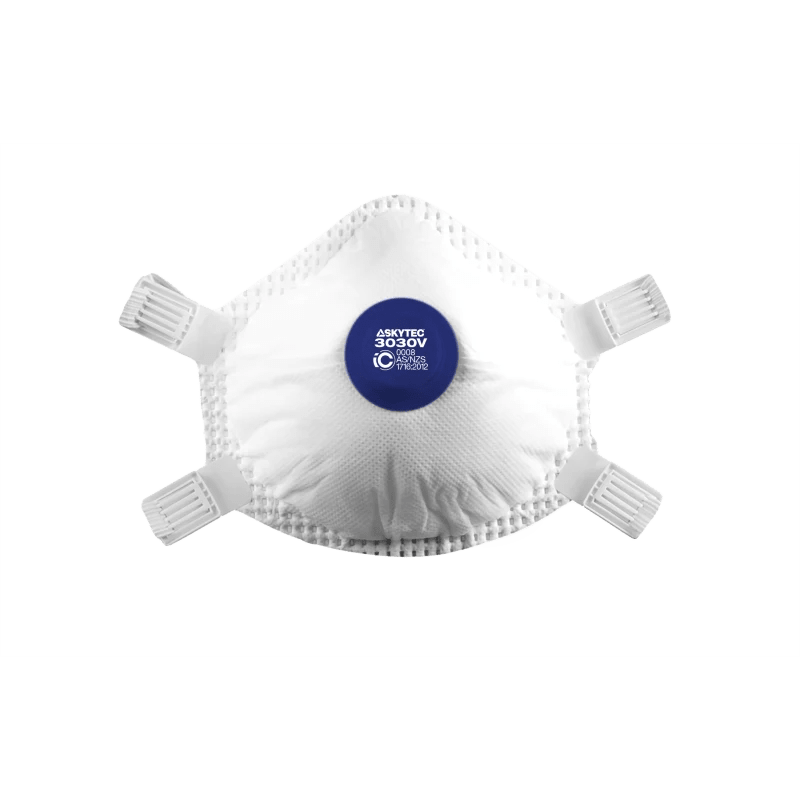

3030V
P2 Disposable Pre-Formed Cup Shape Respirator
Product Features
- Lightweight, cup shaped respirator
- Four point headstrap adjustment
- Preformed nosebridge removes the need for regular adjustment
- Electrostatic filter media
- Soft touch elastic
- PVC Foam Inner Face Seal
- Certified to AS/NZS 1716:2012 P2
Options
Product Resources
Industry
Applications
Disease and Infection Control
Labouring
Metal Forging and Processing
Further Information
The 3030V disposable respirators offer an outstanding level of protection demonstrated when conducting Face Fit Testing. Providing low breathing resistance and a lightweight outer shell maintaining an excellent shape.
Available Options
Product Code | Colour | Weight |
---|---|---|
SKRSM096AP |
White
|
50g |
Product Specifics
Master SKU | SKRSM096A |
---|---|
Filter Media Material | Melt Blown Polypropylene |
Inner Cover Material | Polypropylene |
Headstrap Material | Latex-Free Elastane, Polyester, Textile Elastic |
Outer Cover Material | Polypropylene |
Nosefoam Material | Polyethylene Foam |
Valved | ✓ |
Valve Cover Material | Polypropylene, ABS |
Valve Diaphragm Material | Synthetic Rubber |
Certifications
Cat Level | III |
---|---|
EN 149:2001 + A1:2009 | FFP3 NR |
AS/NZS 1716:2012 | P2 |
EN 149:2001
Class | FFP3 |
---|---|
Disposable | ✓ |
AS\NZS 1716:2012
Options
Selected Option Specifics (SKRSM096AP)
SKU | SKRSM096AP |
---|---|
Main Colour |
White
|
Secondary Colour |
Blue
|
Shelf Life | 5Years |
Storage Conditions
Minimum Temperature | -5°C |
---|---|
Maximum Temperature | 35°C |
Humidity | <70% |
Unit Dimensions
Unit Weight | 50g |
---|
Packaging
Items per Pack | 5 |
---|---|
Pack weight | 0.25kg |
Items per Case | 100 |
Case weight | 7.5kg |
Packs per Carton | 20 |
Product Selector Guidance Chart
Option | Assigned Protection (APF) | Oil/Water Based Particulates | Non-Toxic Dusts | Fine Toxic Dusts/Mists/Fumes | Very Fine Toxic Dusts/Mists/Fumes | Metal Fume |
---|---|---|---|---|---|---|
SKRSM096AP | 10 |
Parts Dimensions
Part | Width | Length | Height |
---|---|---|---|
Exhalation Valve | 40 mm | 40 mm | 11 mm |
Headband Clip | 19 mm | 37 mm | 4 mm |
Headband | 12 mm | 350 mm | 0.4 mm |
Respirator | 60 mm | 150 mm | 130 mm |
Recommendations for Use
APPLICATIONS: May be used to provide respiratory protection against a range of airborne particulate.
WARNING: Respirators should only be worn where the employer has determined that they are appropriate for the workplace hazzards and the wearer is trained in the product use. The efficiency of the filter deteriorates in the presence of oil or oil mists.
THIS RESPIRATOR MUST NOT BE USED IN:
- Atmospheres immediately dangerous to life and health (IDLH) containing toxic gases or vapours
- Areas where the particulate concentration exceeds 10 times the occupational exposure standard
- Do not use where there may be a deficiency of oxygen
- Do not use in highly toxic atmospheres refer to AS/NZS 1715
- Respirators should be used in accordance with Australian / New Zealand 1715 section, use and maintenance of respiratory protective devices
IMPORTANT:
• A fit check must be performed prior to using your disposable respirator.
• Always read the disposable respirator wearer instructions.
• Should air leakage occur at respirator edges, adjust the fit to eradicate
leakage & perform the above fit check.
• Should air leakage occur around the nose, adjust the foam nose/cheek
support strip to eradicate the leakage & perform the above fit check.
• When an appropriate fit & seal cannot be achieved do not enter the
hazardous environment & follow on-site policy referencing
AS/NZS 1716: 2012.
*The end user is responsible for determining the suitability of this product for use in their specific conditions and applications. Sample trialling is
recommended and welcomed. NOTE: To achieve an optimum facial seal, the wearer should be cleanshaven. It is recommended the wearer be fit tested prior to use in accordance with AS/NZS1715: 2009 and/or onsite requirements. Training on the safe use and limitations of the disposable face mask must be performed in accordance with AS/NZS 1715:2009 section 2.4.
Disposal
These respirators should:
- not be cleaned and reused
- be changed when the filter medium becomes clogged
- be disposed of as solid waste after use
