C-3V

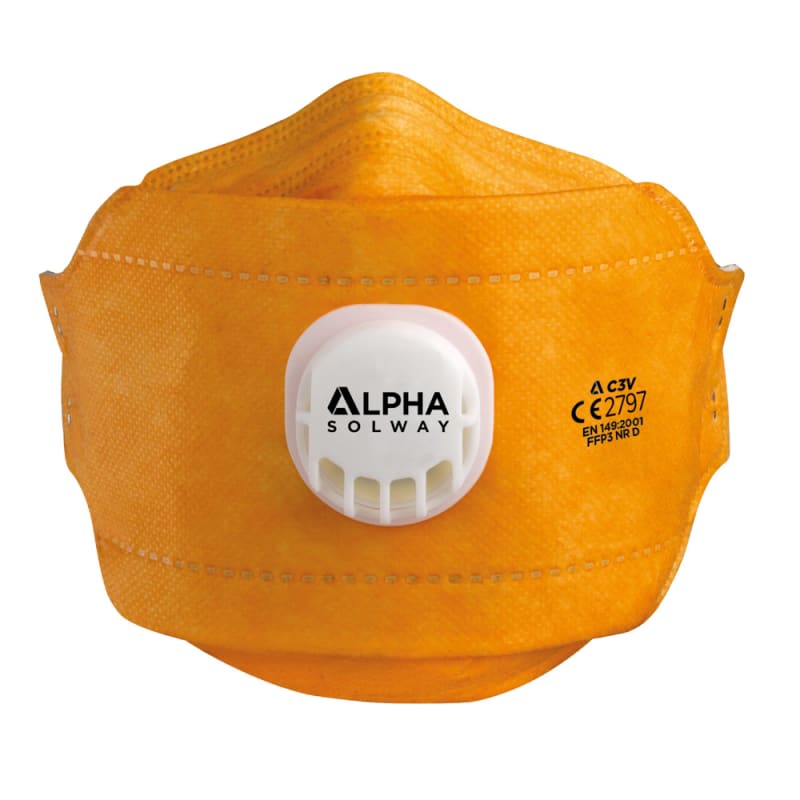

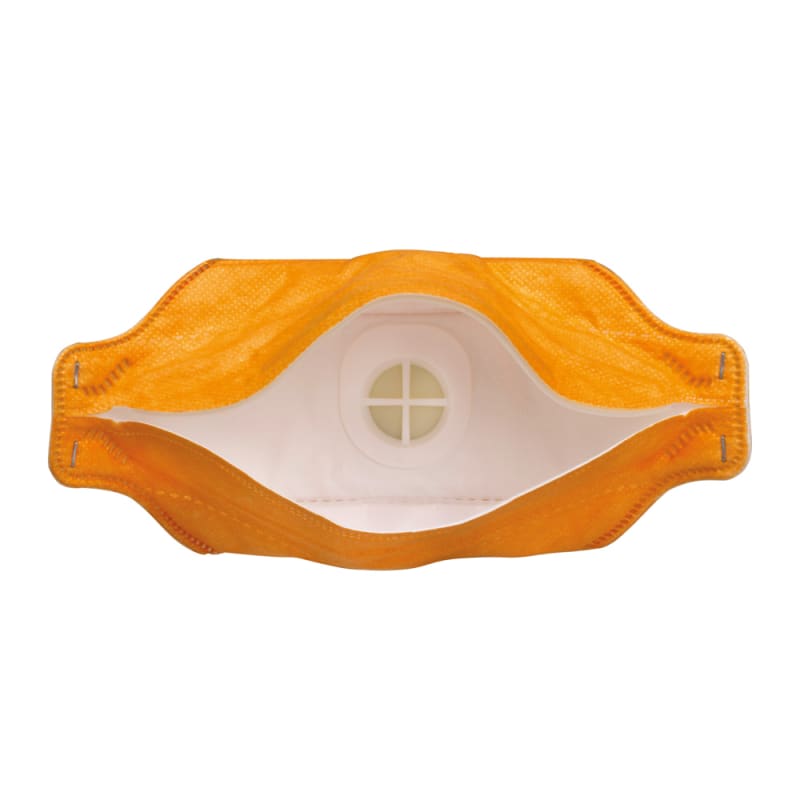

P3 Disposable Respirator
Product Features
- Twin fold design, flexes whilst talking to maintain seal and enables easy storage in a pocket
- Soft lightweight fabric provides comfortable face seal
- Large surface area of filter media lowers breathing resistance
- Colour coded filter media for ease of identification
- Conforms to EN 149: 2001 + A1: 2009 FFP3 NR D
Certifications
Options
Product Resources
Further Information
The C Series is a lightweight low profile twin fold disposable respirator featuring a unique pleat design that enables the wearer to talk without compromising fit. C-3V Single shift use valved particulate respirator. Features exhalation valve to reduce temperature and humidity within the respirator and improve exhalation resistance.
Available Options
Product Code | Colour | Weight |
---|---|---|
MFAS/ALP/C3V |
Orange /White
|
8.7g |
Product Specifics
Master SKU | MFAS/ALPC3 |
---|---|
Filter Media Material | Melt Blown Polypropylene |
Inner Cover Material | Polypropylene |
Headstrap Material | Latex-Free Synthetic Rubber |
Outer Cover Material | Polypropylene |
Nosebridge Material | Polyethylene,Iron Wire |
Nosefoam Material | Polyethylene |
Valved | ✓ |
Valve Cover Material | Polypropylene |
Valve Diaphragm Material | Silicone Rubber |
Certifications
CE | ✓ |
---|---|
EN 149:2001 + A1:2009 | FFP3 NR |
EN 149:2001
Class | FFP3 |
---|---|
Disposable | ✓ |
Anti Clogging (Dolomite Test) | ✓ |
Options
Selected Option Specifics (MFAS/ALP/C3V)
SKU | MFAS/ALP/C3V |
---|---|
Main Colour |
Orange
|
Secondary Colour |
White
|
Unit Dimensions
Unit Weight | 8.7g |
---|
Packaging
Items per Pack | 20 |
---|---|
Items per Case | 240 |
Case height | 53cm |
Case width | 35cm |
Case length | 50cm |
Parts Dimensions
Part | Width | Length | Height |
---|---|---|---|
Exhalation Valve | 38.2 mm | 41.3 mm | 12.1 mm |
Headband | 4.8 mm | 210 mm | 0.4 mm |
Nosebridge | 20 in | 90 in | 1.2 in |
Nosefoam | 20 mm | 2 mm | 171 mm |
Respirator | 84 mm | 212 mm | 128 mm |
Recommendations for Use
This respirator is disposable and recommended for single shift use only. Do not attempt to clean or re-use.
EC Compliance
EU Certification according to Regulation (EU) 2016/425 issued by: BSI Group, Kitemark Court, Davy Avenue, Knowlhill, Milton Keynes, MK5 8PP, United Kingdom. [N.B. No.0086].
Notified Body CE
0086 | BSI Assurance UK Ltd - Kitemark Court Davy Avenue Knowlhill, Milton Keynes MK5 8PP, United Kingdom
