Riley Arezzo

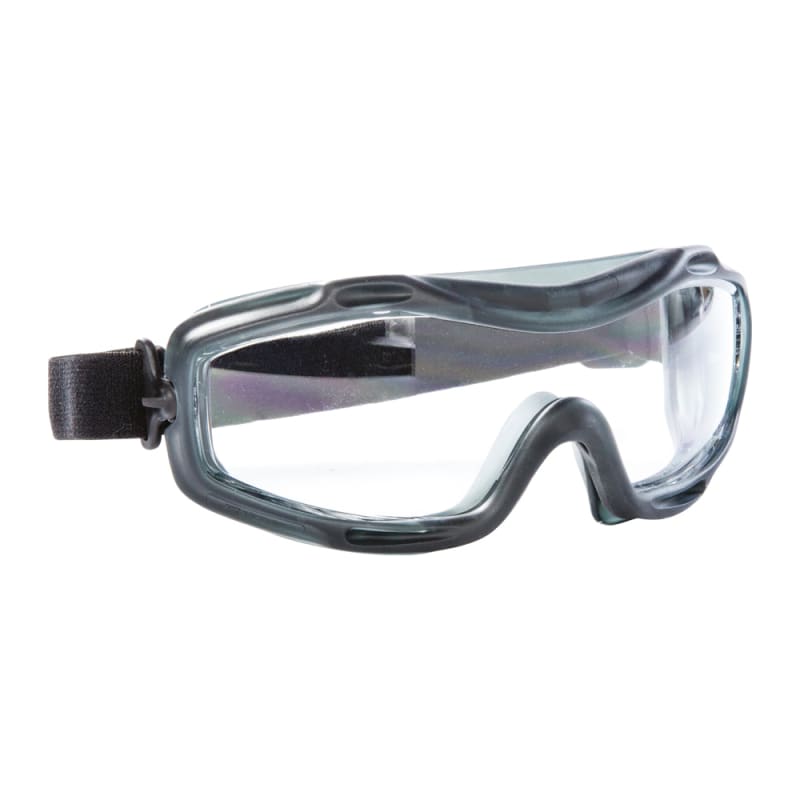

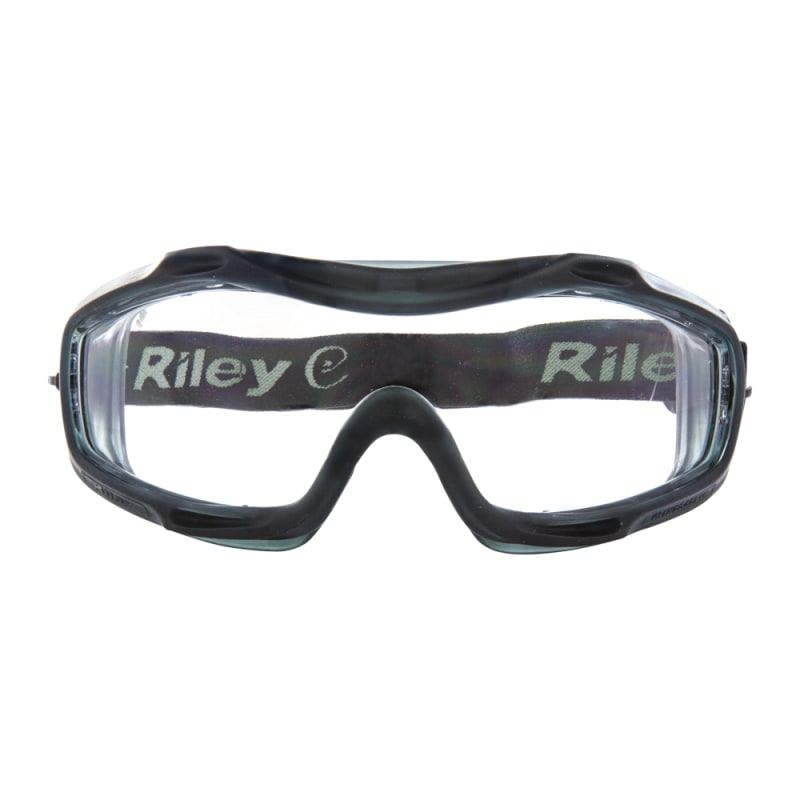

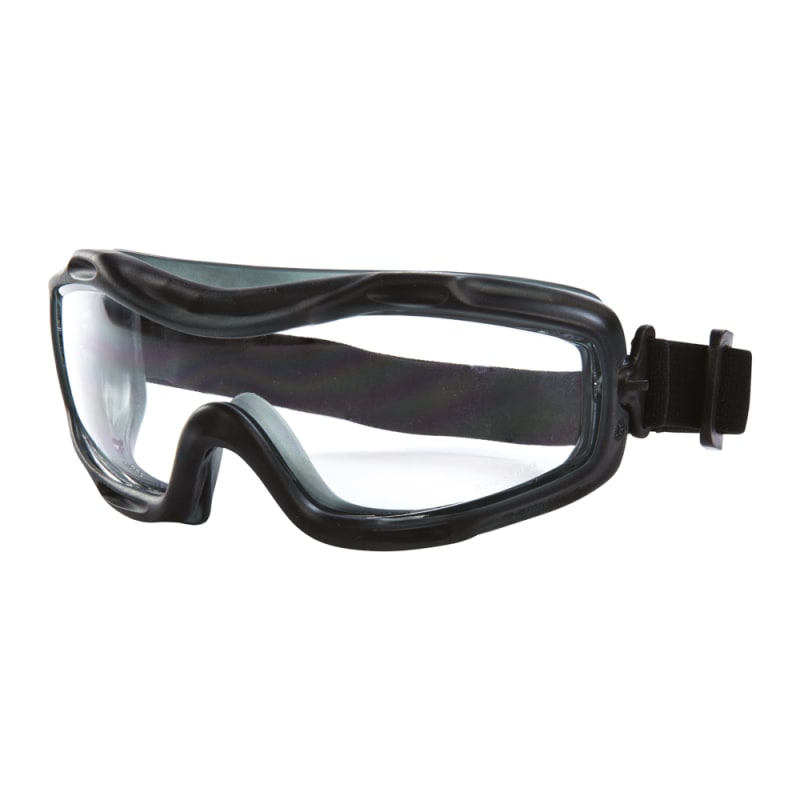

Low-Profile & lightweight safety goggles
Product Features
- Ultra slim design
- Soft PVC comfort frame
- Fully adjustable pivotable head strap
- Weight: 56g
Certifications
Options
Lens Colour
Clear
Product Resources
Applications
Component and Product Assembly
Vehicle Repairs and Maintenance
Commercial Cleaning
Woodwork and Fabrication
General Maintenance
Features
Unique Inner Face Seal
Further Information
A compact and lightweight goggle offering protection against liquid droplets as well as impacts. The low-profile design enhances the field of vision and a comfortable fit is guaranteed thanks to the fully adjustable head strap.
Available Options
| Lens Type | Product Code | Lens Marking | Frame Marking | Protects Against | Coatings | |
|---|---|---|---|---|---|---|
|
Clear
|
RLY00161 |
2C-1.2 R 1 BT KN Z87+ U6 |
R 166 BT CE UKCA Z87+ |
Impacts Liquid Droplets Dust |
Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
Product Specifics
| SKU | RLY0016 |
|---|---|
| Lens material | Polycarbonate |
| CE | ✓ |
| EN 166 | ✓ |
| UKCA | ✓ |
| Inner Face Seal | ✓ |
| Face Protector | ✓ |
Options
Selected Option Specifics (RLY00161)
| Lens Colour |
Clear
|
|---|---|
| Frame colour |
Black
|
| Lens base | 6mm |
| Protects Against | Impacts Liquid Droplets Dust |
| Lens coating | Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
| Lens Marking | 2C-1.2 R 1 BT KN / Z87+ U6 |
| Frame Marking | R 166 BT CE UKCA Z87+ |
Unit Dimensions
| Unit Weight | 73g |
|---|---|
| Unit Width | 80mm |
| Unit Length | 150mm |
| Unit Height | 60mm |
Packaging
| Items per Pack | 5 |
|---|---|
| Items per Case | 100 |
| Case height | 85cm |
| Case width | 31cm |
| Case length | 47cm |
| Packs per Carton | 10 |
| Packaging Information | 20 boxes of 5 |
| Card/Paper Weight | 6.7g |
|---|---|
| Plastic Weight | 1g |
| Recycled Plastic Content | 30% |
EN 166
| SKU | Lens Colour | Filter | Tint | Manufacturer Identifier | Optical Class | Mechanical Strength | Additional Markings | Frame Mechanical Strength |
|---|---|---|---|---|---|---|---|---|
| RLY00161 |
Clear
|
2C UV w/ colour | 1.2 Clear or Amber | 1 For Continuous Work |
B Medium-energy Impact T Extreme temperatures |
K Resistance to Scratching N Resistance to Fogging |
B Medium-energy Impact T Extreme temperatures |
ANSI/ISEA Z87.1
| SKU | Lens Colour | Impact Rating | UV Light Rating | |
|---|---|---|---|---|
| RLY00161 |
Clear
|
Z87+ High Velocity Impact |
|
U6 |
Cleaning
The lenses should be cleaned regularly.
Storage
All products must be stored in a dry and clean environment. After each use it is recommended to keep the spectacles or goggles in a microfibre pouch or rigid case.
Disposal
Pitted, scratched or damaged lenses must be replaced by replacing the complete product. If the frame is damaged also replace the complete product.
