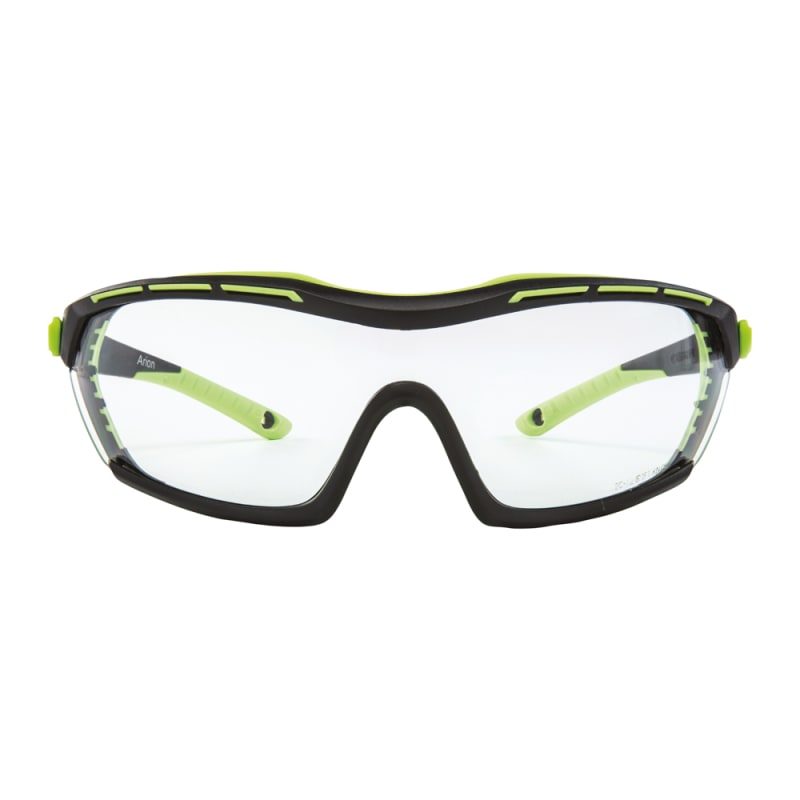

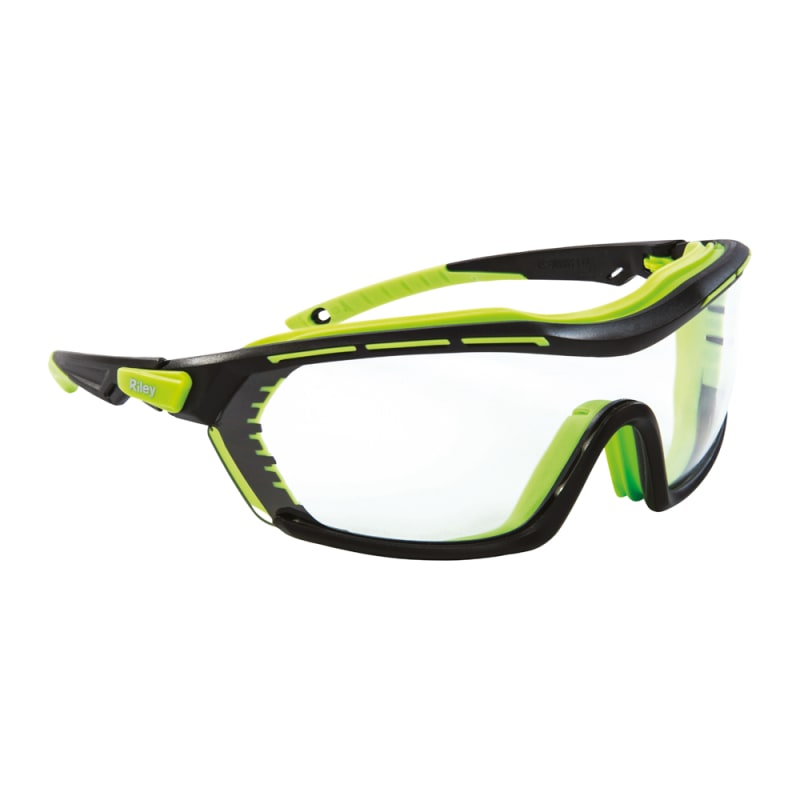

Arion
High comfort fit safety glasses with flexible frames
Product Features
- Single wide vision lens
- Soft TPE padded seal enhances comfort and protection
- Inclinable temple adjustment allows an easy fit onto most faces
- Co-injected bi-colour temples with flexible TPE ends enhance overall fit and comfort
- Optional head strap enhances the seal and fit

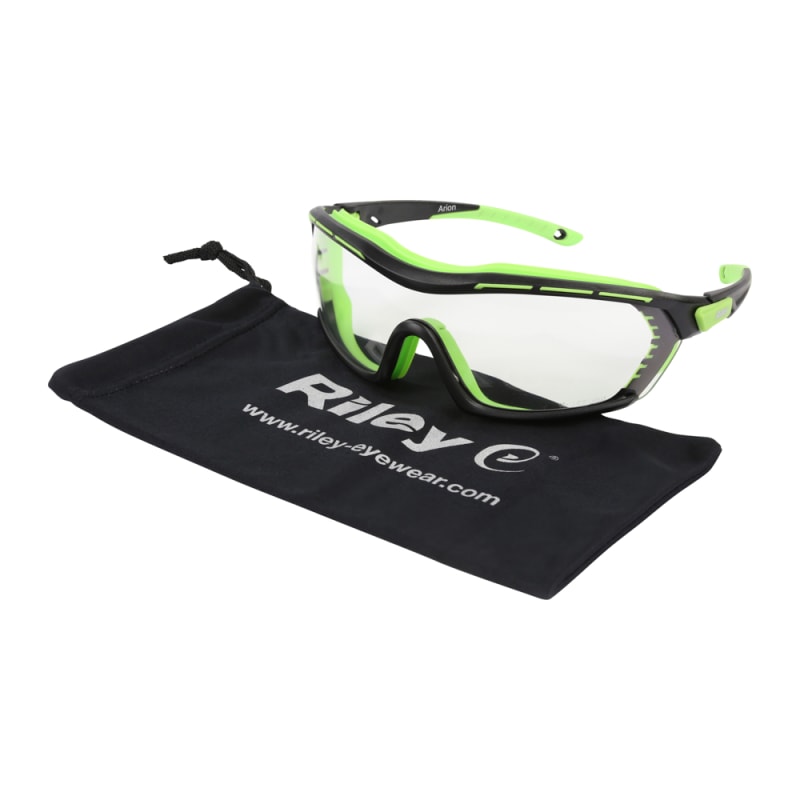

- Supplied with a microfibre storage pouch
Certifications
Options
Lens Colour
Clear
Grey
Product Resources
Applications
Vehicle Repairs and Maintenance
Commercial Cleaning
Gardening
General Maintenance
Laboratory Analysis
Features
Tempflex
Panoramic Vision
Padded Seal
Inclinable Temples
Dielectric
Further Information
The highly flexible ARION™ provides extreme levels of wearer comfort. The seal around the frame provides extra protection in dusty and dirty environments. An individual fit can be achieved via the inclinable side-arms and the soft TPE components around the forehead, ears and nose help to maximise comfort.
Available Options
| Lens Type | Frame Colour | Product Code | Lens Marking | Frame Marking | Protects Against | Coatings | |
|---|---|---|---|---|---|---|---|
|
Clear
|
Black /Green
|
RLY00021 | 2C-1.2 R 1 FT KN CE | R 166 FT CE UKCA |
Impacts UV Radiation |
Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
|
|

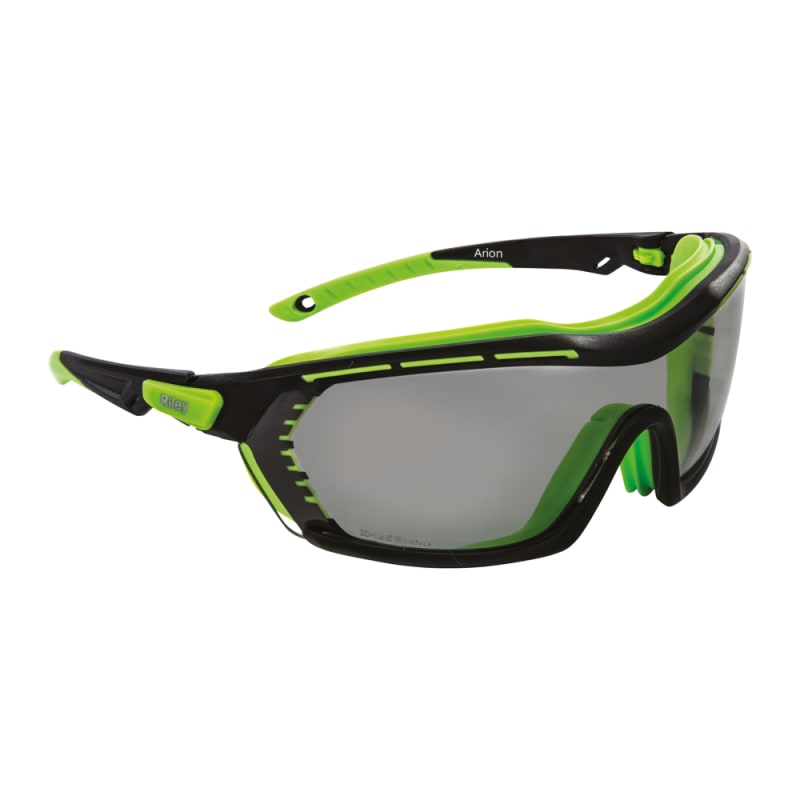

Grey
|
Black /Green
|
RLY00022 | 5-2.5 R 1 FT KN CE | R 166 FT CE UKCA |
Impacts UV Radiation Solar Radiation |
Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
|
|
|
Black
|
RLYA0001 |
Product Specifics
| SKU | RLY0002 |
|---|---|
| Lens material | Polycarbonate |
| Temple Material | Thermoplastic TR90, Thermoplastic Elastomers (TPE) |
| CE | ✓ |
| EN 166 | ✓ |
| UKCA | ✓ |
| Inner Face Seal | ✓ |
Options
Selected Option Specifics (RLY00021) (RLY00022) (RLYA0001)
| Lens Colour |
Clear
|
|---|---|
| Frame colour |
Black /Green
|
| Lens base | 9mm |
| Protects Against | Impacts UV Radiation |
| Lens coating | Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
| Lens Marking | 2C-1.2 R 1 FT KN CE |
| Frame Marking | R 166 FT CE UKCA |
| Lens Colour |
Grey
|
|---|---|
| Frame colour |
Black /Green
|
| Lens base | 9mm |
| Protects Against | Impacts UV Radiation Solar Radiation |
| Lens coating | Tecton 400 - K&N Anti-Scratch & Anti-Fog UV400 Moisture Repellent |
| Lens Marking | 5-2.5 R 1 FT KN CE |
| Frame Marking | R 166 FT CE UKCA |
| Frame colour |
Black
|
|---|---|
| Lens base | 9mm |
| Temple Length | 130mm |
Unit Dimensions
| Unit Weight | 66g |
|---|---|
| Unit Width | 80mm |
| Unit Length | 150mm |
| Unit Height | 60mm |
Unit Dimensions
| Unit Weight | 76g |
|---|---|
| Unit Width | 80mm |
| Unit Length | 150mm |
| Unit Height | 60mm |
Unit Dimensions
| Unit Weight | 11g |
|---|
Packaging
| Items per Pack | 10 |
|---|---|
| Items per Case | 200 |
| Case height | 85cm |
| Case width | 31cm |
| Case length | 47cm |
| Case weight | 16.4kg |
| Packaging Information | 20 boxes of 10 |
| Card/Paper Weight | 6.7g |
|---|---|
| Plastic Weight | 1g |
| Recycled Plastic Content | 30% |
Packaging
| Items per Pack | 10 |
|---|---|
| Items per Case | 200 |
| Case height | 85cm |
| Case width | 31cm |
| Case length | 47cm |
| Case weight | 16.4kg |
| Packaging Information | 20 boxes of 10 |
| Card/Paper Weight | 6.7g |
|---|---|
| Plastic Weight | 1g |
| Recycled Plastic Content | 30% |
Packaging
| Items per Case | 1000 |
|---|---|
| Case height | 47cm |
| Case width | 17cm |
| Case length | 85cm |
| Case weight | 11kg |
| Packaging Information | 100 singles |
| Card/Paper Weight | 6.7g |
|---|---|
| Plastic Weight | 1g |
| Recycled Plastic Content | 30% |
EN 166
| SKU | Lens Colour | Filter | Tint | Manufacturer Identifier | Optical Class | Mechanical Strength | Additional Markings | Frame Mechanical Strength |
|---|---|---|---|---|---|---|---|---|
| RLY00021 |
Clear
|
2C UV w/ colour | 1.2 Clear or Amber | 1 For Continuous Work |
F Low-energy Impact T Extreme temperatures |
K Resistance to Scratching N Resistance to Fogging |
F Low-energy Impact T Extreme temperatures |
|
| RLY00022 |
Grey
|
5 Solar filter | 2.5 Grey or Revo | 1 For Continuous Work |
F Low-energy Impact T Extreme temperatures |
K Resistance to Scratching N Resistance to Fogging |
F Low-energy Impact T Extreme temperatures |
|
| RLYA0001 |
|
Cleaning
The lenses should be cleaned regularly.
Storage
All products must be stored in a dry and clean environment. After each use it is recommended to keep the spectacles or goggles in a microfibre pouch or rigid case.
Disposal
Pitted, scratched or damaged lenses must be replaced by replacing the complete product. If the frame is damaged also replace the complete product.
