Reon
Adjustable face shield rated for high energy impacts
Product Features
- Ratchet adjustment allows for a secure fit to a range of head sizes
- Padded headband for a comfortable fit
- Adjustable pivot for wearer to select optimum angle
- Fitted chinguard
- Simple, cost-efficient visor replacement system
- Polycarbonate visor includes anti-fog coating
- Polycarbonate visor has Level A impact resistance – the highest attainable level under EN 166
- Frameless design for a wide, unrestricted field of vision
- Protects against splashes of molten metal
- Welding visor include IR protection
Certifications
Options
Lens Colour
Product Resources
Applications
Further Information

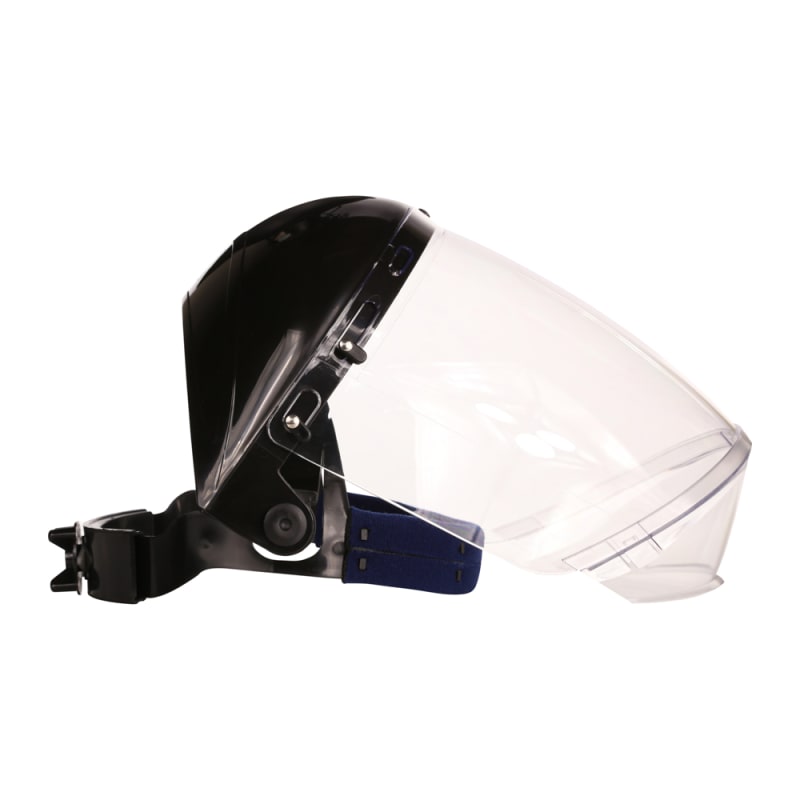

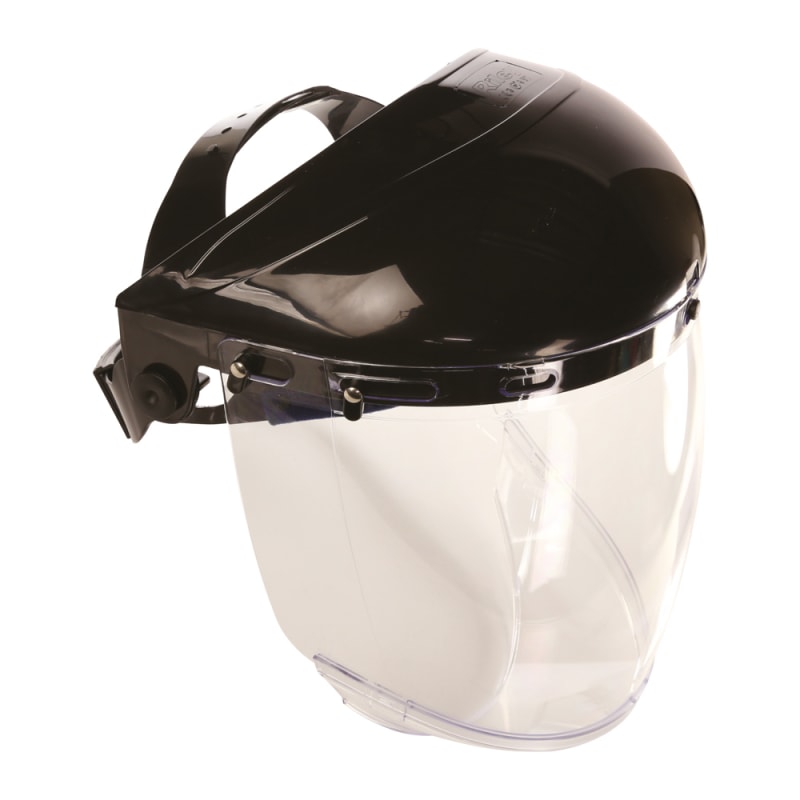

The REON™ face shield provides the wearer with ‘Class A’ face protection. High energy impact resistance to EN 166 ‘Level A’ means that the face shield protects against impacts up to 190m/s (425mph). REON is also top of the class for comfort and vision clarity.
The REON™ browguard is easily adjustable offering a comfortable and secure fit for maximum protection. Available with a range of visors which are easily interchangeable and all offering greater protection with a large integral chin guard. The Polycarbonate visors have the added benefit of anti-fog coating with a high impact rating. The Reon range is top of the class for comfort and vision clarity
Available Options
Lens Type | Product Code | Lens Marking | Frame Marking | Protects Against | Coatings | |
---|---|---|---|---|---|---|
Clear
|
RLY00351 | 2C-1.2 R 1 AT | R |
Impacts UV Radiation Molten Metal |
Anti-Fog | |
|
RLY00352 |
Impacts UV Radiation Molten Metal |
||||
Shade 3
|
RLY00353 | 3 R 1 B CE | R |
Impacts UV Radiation Molten Metal Infrared |
Anti-Scratch | |
Shade 5
|
RLY00354 |
5 R 1 B CE R I3 |
R |
Impacts UV Radiation Molten Metal Infrared |
Anti-Scratch | |
Clear
|
RLY00355 | 2C-1.2 R 1 FT | R |
Impacts UV Radiation |
Anti-Fog |
Product Specifics
SKU | RLY0035 |
---|---|
Series | Reon |
Lens material | Polycarbonate |
Hinge Material | Metal |
CE | ✓ |
EN 166 | ✓ |
UKCA | ✓ |
Headband Material | Nylon |
Options
Selected Option Specifics (RLY00351) (RLY00352) (RLY00353) (RLY00354) (RLY00355)
Lens Colour |
Clear
|
---|---|
Frame colour |
Black
|
Temple Length | 130mm |
Protects Against | Impacts UV Radiation Molten Metal |
Lens coating | Anti-Fog |
Lens Marking | 2C-1.2 R 1 AT |
Frame Marking | R |
Frame colour |
Black
|
---|---|
Temple Length | 130mm |
Protects Against | Impacts UV Radiation Molten Metal |
Lens Colour |
Shade 3
|
---|---|
Frame colour |
Black
|
Protects Against | Impacts UV Radiation Molten Metal Infrared |
Lens coating | Anti-Scratch |
Lens Marking | 3 R 1 B CE |
Frame Marking | R |
Lens Colour |
Shade 5
|
---|---|
Frame colour |
Black
|
Protects Against | Impacts UV Radiation Molten Metal Infrared |
Lens coating | Anti-Scratch |
Lens Marking | 5 R 1 B CE / R I3 |
Frame Marking | R |
Lens Colour |
Clear
|
---|---|
Frame colour |
Black
|
Temple Length | 130mm |
Protects Against | Impacts UV Radiation |
Lens coating | Anti-Fog |
Lens Marking | 2C-1.2 R 1 FT |
Frame Marking | R |
Unit Dimensions
Unit Weight | 240g |
---|---|
Unit Width | 250mm |
Unit Length | 250mm |
Unit Height | 120mm |
Unit Dimensions
Unit Weight | 174g |
---|---|
Unit Width | 230mm |
Unit Length | 240mm |
Unit Height | 140mm |
Unit Dimensions
Unit Weight | 63.5g |
---|
Packaging
Items per Pack | 1 |
---|---|
Items per Case | 20 |
Case height | 12cm |
Case width | 43cm |
Case length | 50cm |
Case weight | 13.6kg |
Packs per Carton | 50 |
Packaging Information | 1 box of 20 |
Card/Paper Weight | 6.7g |
---|---|
Plastic Weight | 1g |
Recycled Plastic Content | 30% |
Packaging
Items per Case | 20 |
---|---|
Case height | 50cm |
Case width | 48cm |
Case length | 80cm |
Case weight | 10.4kg |
Packs per Carton | 50 |
Packaging Information | 1 box of 20 |
Card/Paper Weight | 6.7g |
---|---|
Plastic Weight | 1g |
Recycled Plastic Content | 30% |
Packaging
Items per Pack | 1 |
---|---|
Items per Case | 10 |
Case height | 27cm |
Case width | 43cm |
Case length | 50cm |
Case weight | 6kg |
Packs per Carton | 50 |
Packaging Information | 1 box of 20 |
Card/Paper Weight | 6.7g |
---|---|
Plastic Weight | 1g |
Recycled Plastic Content | 30% |
Packaging
Items per Pack | 1 |
---|---|
Items per Case | 20 |
Case height | 27cm |
Case width | 43cm |
Case length | 50cm |
Case weight | 6kg |
Packs per Carton | 50 |
Packaging Information | 1 box of 20 |
Card/Paper Weight | 6.7g |
---|---|
Plastic Weight | 1g |
Recycled Plastic Content | 30% |
Packaging
Items per Pack | 1 |
---|---|
Items per Case | 10 |
Case height | 47cm |
Case width | 31cm |
Case length | 85cm |
Case weight | 12.7kg |
Packs per Carton | 50 |
Units per Pallet | 2400 |
Packaging Information | 1 box of 20 |
Card/Paper Weight | 6.7g |
---|---|
Plastic Weight | 1g |
Recycled Plastic Content | 30% |
EN 166
SKU | Lens Colour | Filter | Tint | Manufacturer Identifier | Optical Class | Mechanical Strength | Frame Mechanical Strength |
---|---|---|---|---|---|---|---|
RLY00351 |
Clear
|
2C UV w/ colour | 1.2 Clear or Amber | 1 For Continuous Work |
A High-energy Impact T Extreme temperatures |
||
RLY00352 |
|
A High-energy Impact T Extreme temperatures |
|||||
RLY00353 |
Shade 3
|
3 UV w/ colour | 1 For Continuous Work |
B Medium-energy Impact |
|||
RLY00354 |
Shade 5
|
5 Solar filter | 1 For Continuous Work |
B Medium-energy Impact |
|||
RLY00355 |
Clear
|
2C UV w/ colour | 1.2 Clear or Amber | 1 For Continuous Work |
F Low-energy Impact T Extreme temperatures |
AS/NZS 1337.1:2010
SKU | Lens Colour | Impact Rating | Ocular Category |
---|---|---|---|
RLY00351 |
Clear
|
||
RLY00352 |
|
||
RLY00353 |
Shade 3
|
||
RLY00354 |
Shade 5
|
I Increased Robustness |
|
RLY00355 |
Clear
|
