Ligera
High Impact Resistance Safety Glasses in a Durable Frame
Product Features
- Super lightweight 16.5g
- Sleek sports design
- 1 base curve & integral nose piece
- Dual moulded temples with TPE temple ends for maximum fit & comfort
- Anti-Scratch & Anti-fog dual coated UV4 Lenses
- Panoramic lenses offer full wraparound protection & optimum vision
- High-impact resistance under extremes of temperature (-5 to 55 degrees C)
Certifications
Options
Lens Colour
Clear
Grey
Blue
Product Resources
Applications
Component and Product Assembly
Vehicle Repairs and Maintenance
Drilling and Boring
Woodwork and Fabrication
General Maintenance
Features
Sports Style
Aerotemple
Ultra Lightweight
Further Information
Super lightweight Ligera combines maximum wearer fit & comfort with a sleek sports design. With its high impact resistance, UV4 anti-scratch & anti-fog coatings inside & out, Ligera withstands exposure to a host of typical worker envronment conditions. Its full wraparound protection provides the wearer with optimum eye protection & vision.
Available Options
| Lens Type | Frame Colour | Product Code | Lens Marking | Frame Marking | Protects Against | Coatings | |
|---|---|---|---|---|---|---|---|
|

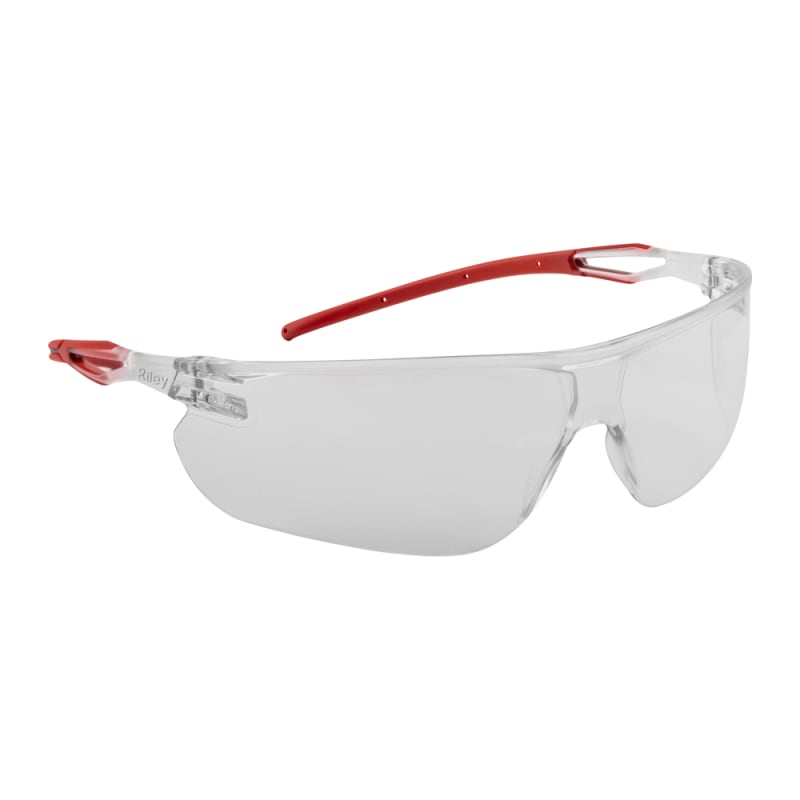

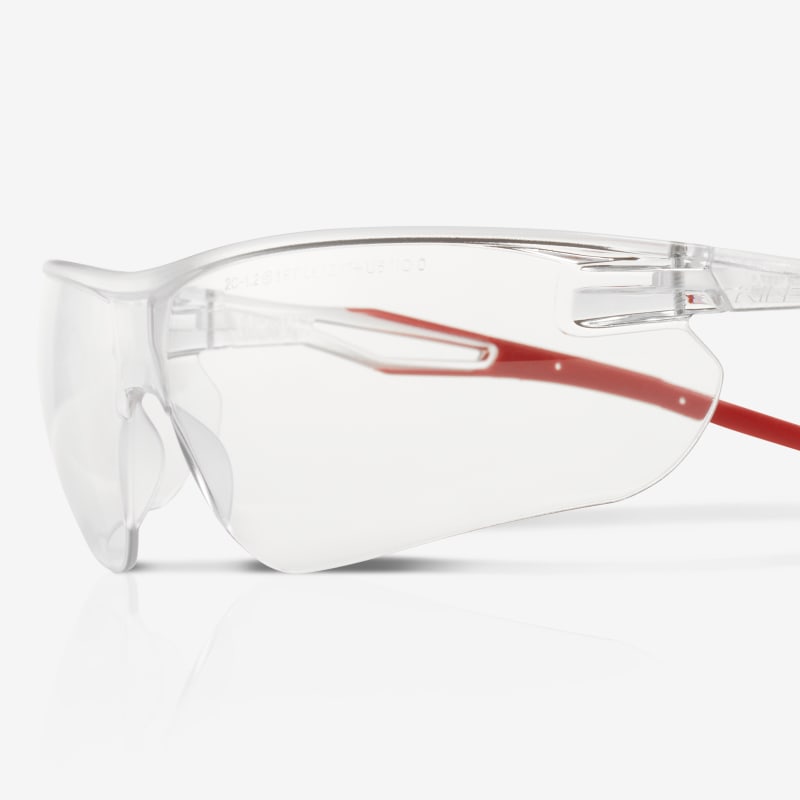

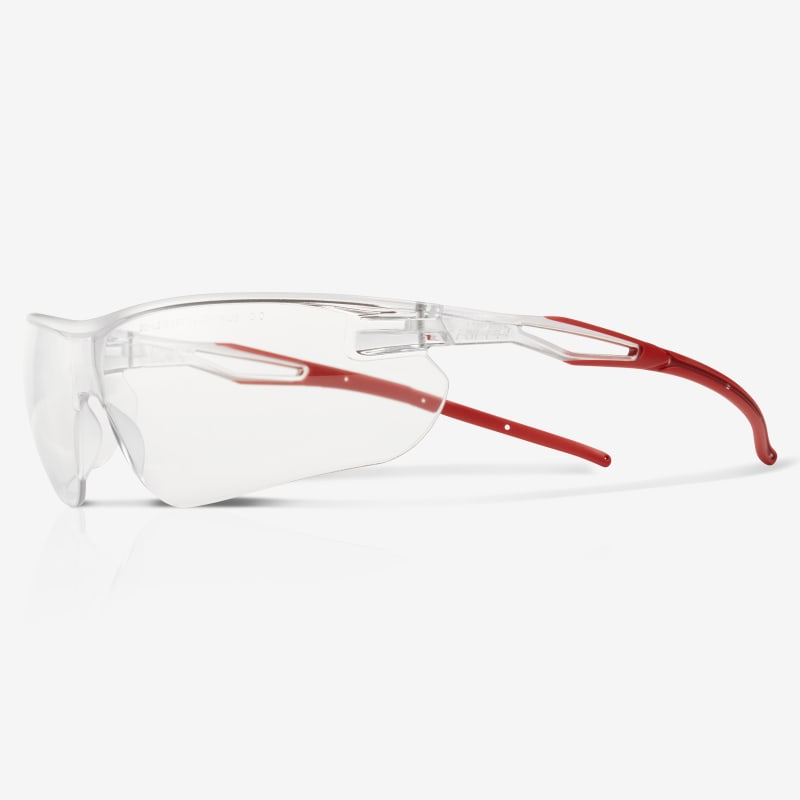

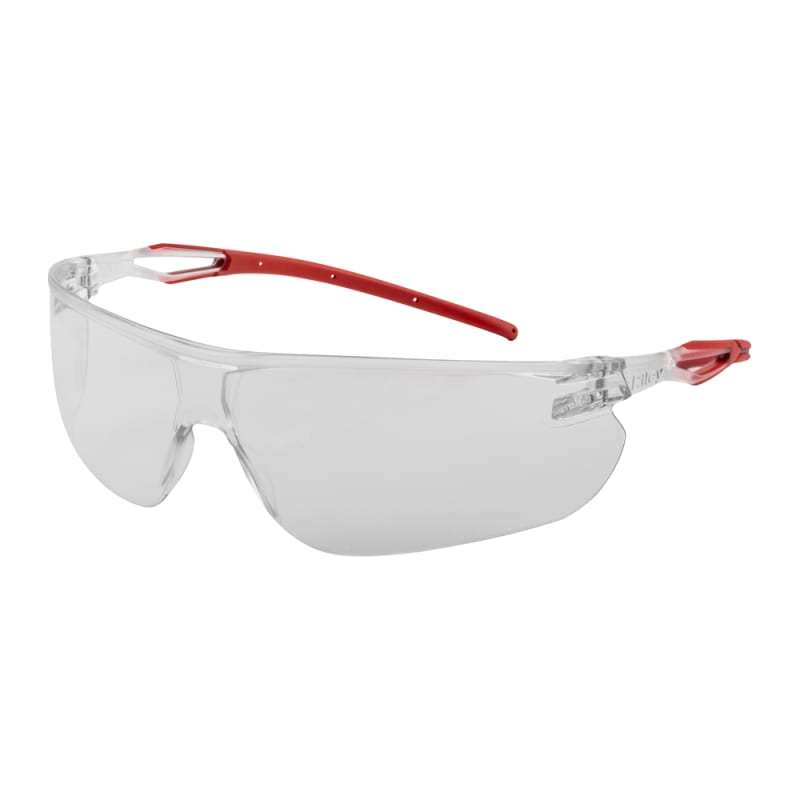

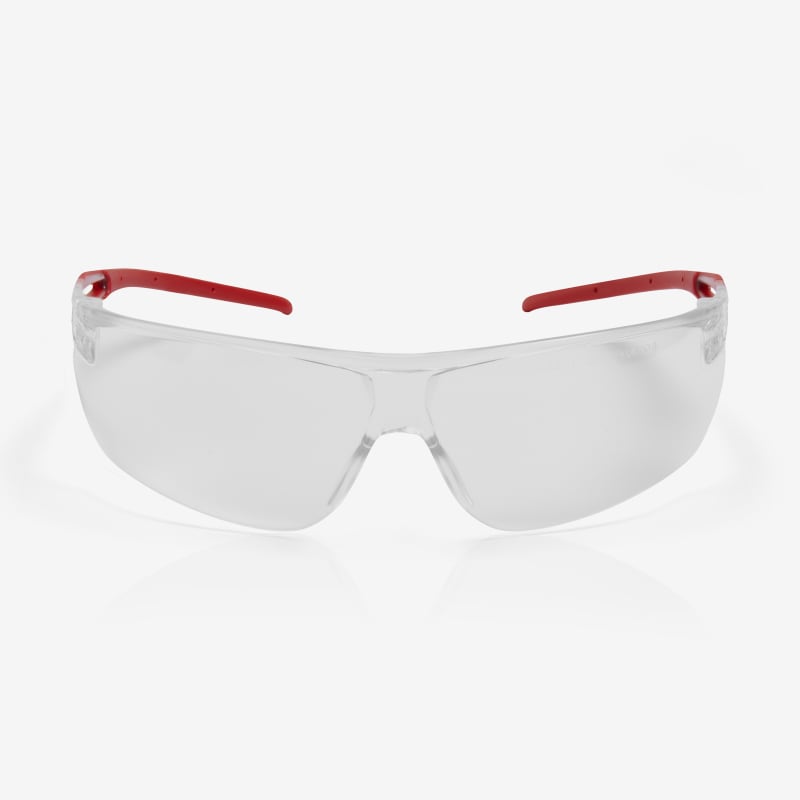

Clear
|
Clear
|
RLY00490 |
2C-1.2 1 FT CE Z87+ U6 S IO 0 |
EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933 |
Impacts UV Radiation |
Arida 400 UV400 Moisture Repellent |
|
|

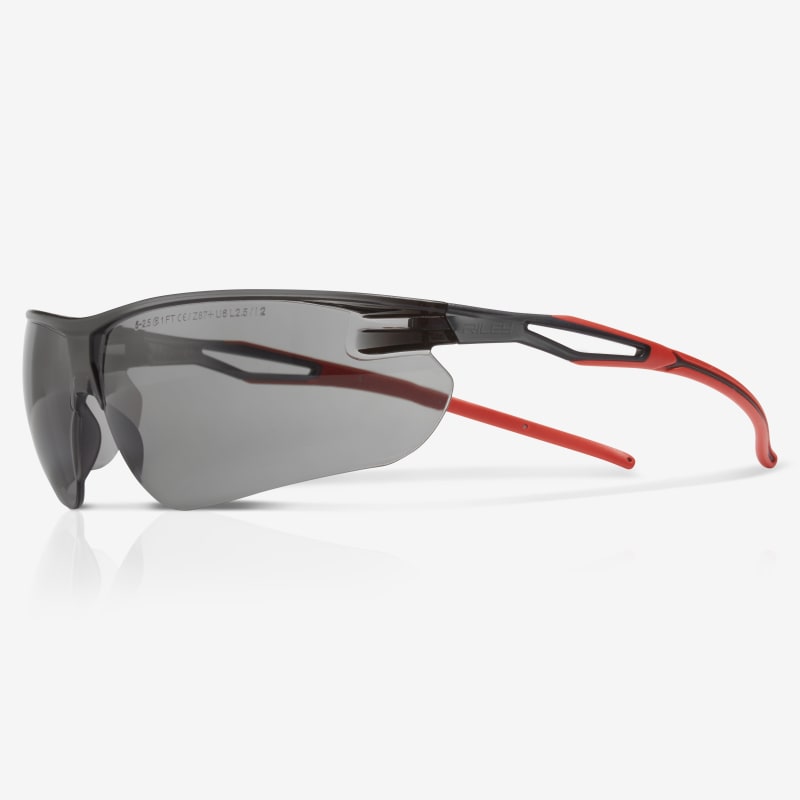

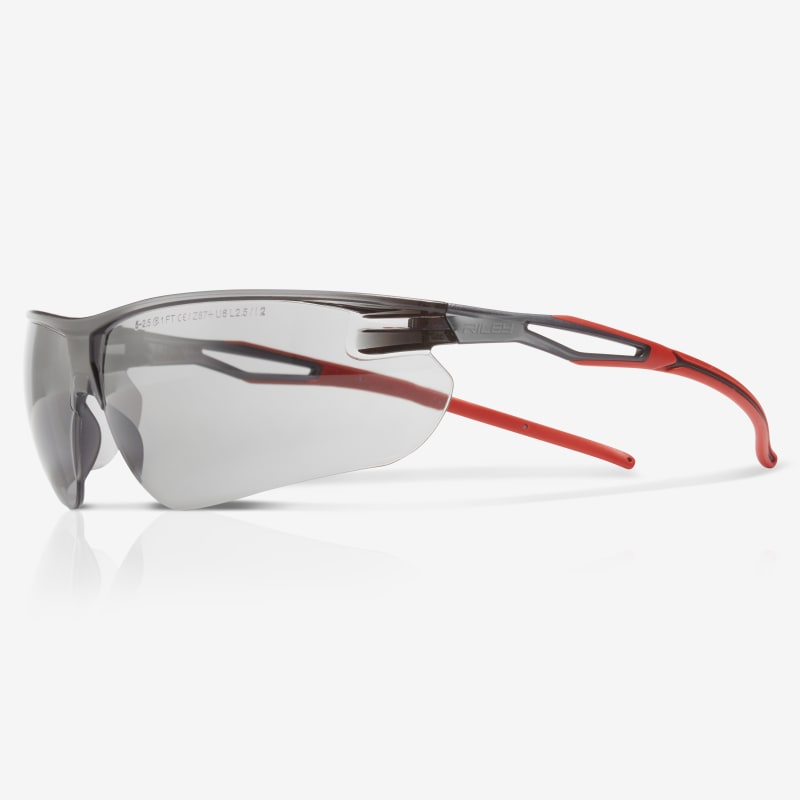

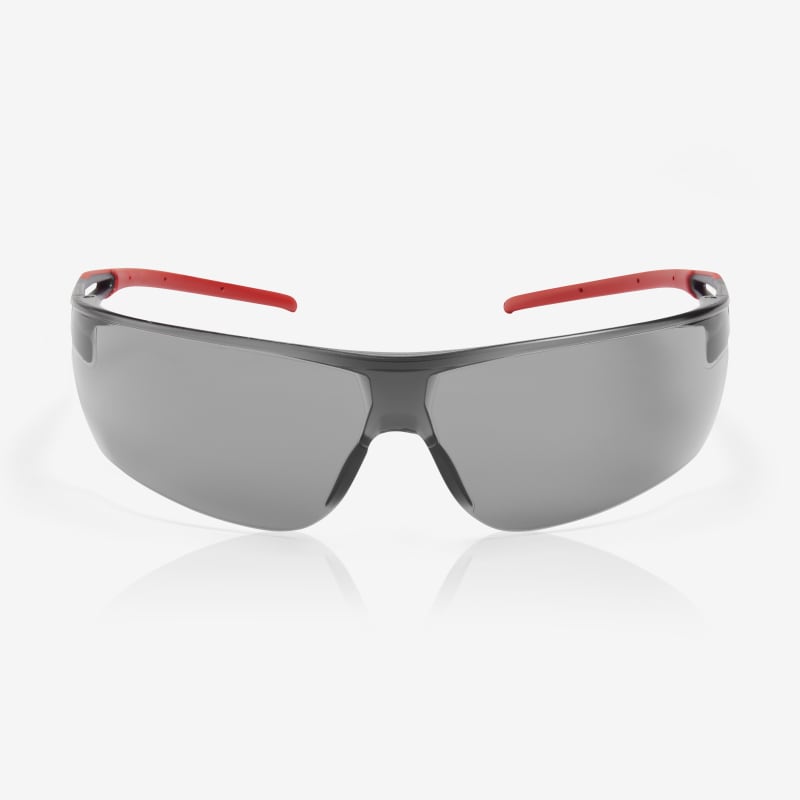

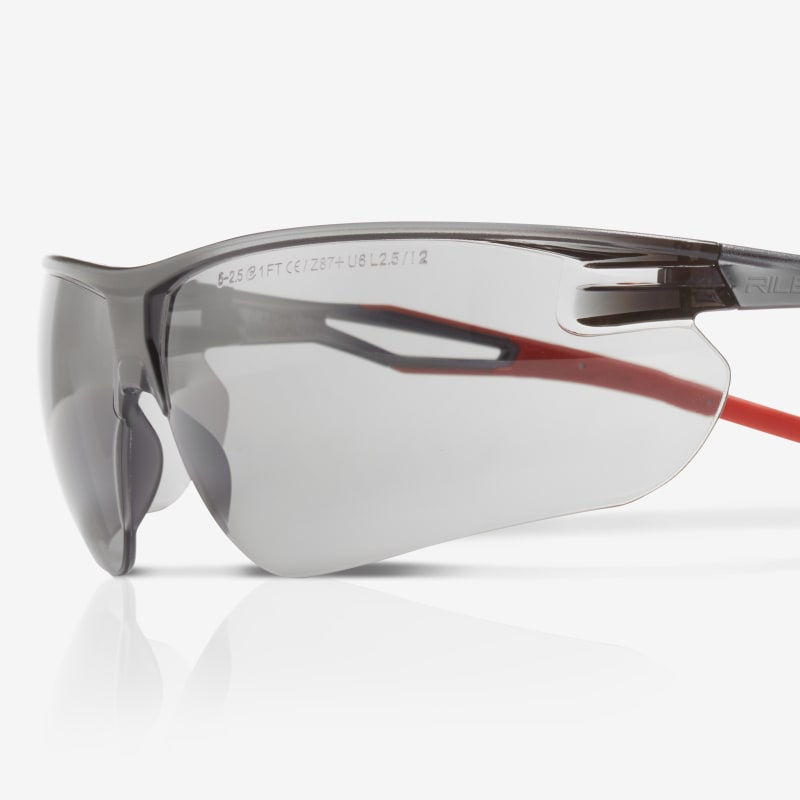

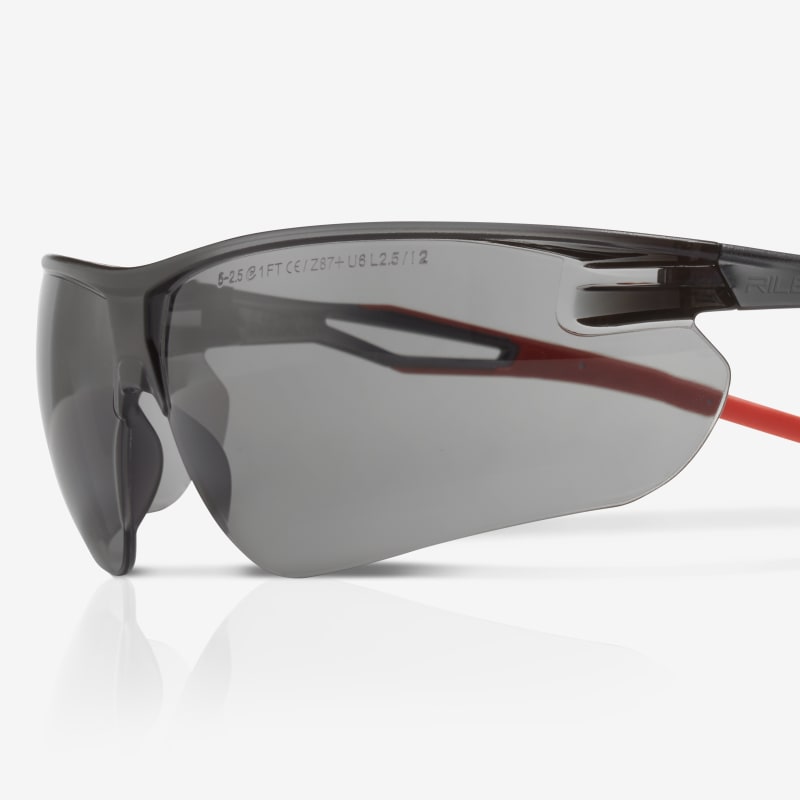

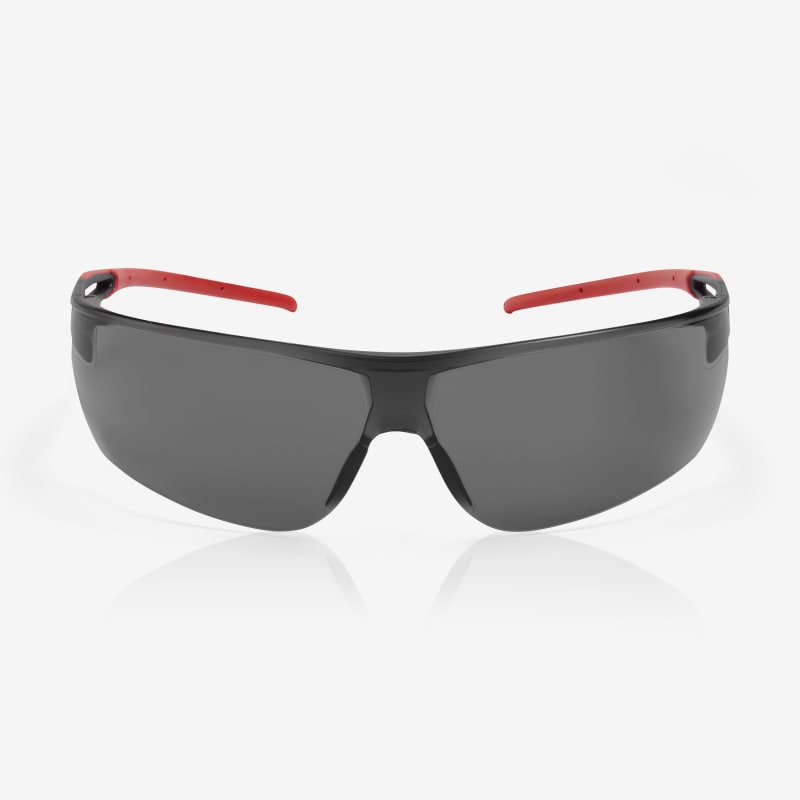

Grey
|
Grey
|
RLY00491 |
5-2.5 1 FT CE Z87+ U6 L2.5 S I 2 |
EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933 |
Impacts UV Radiation Solar Radiation |
Arida 400 UV400 Moisture Repellent |
|
|

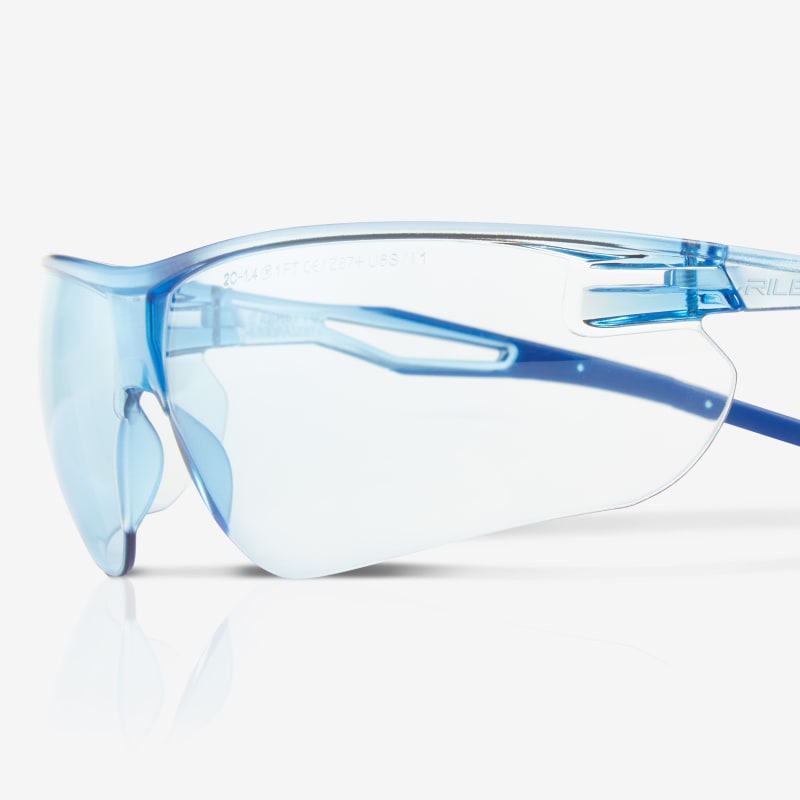

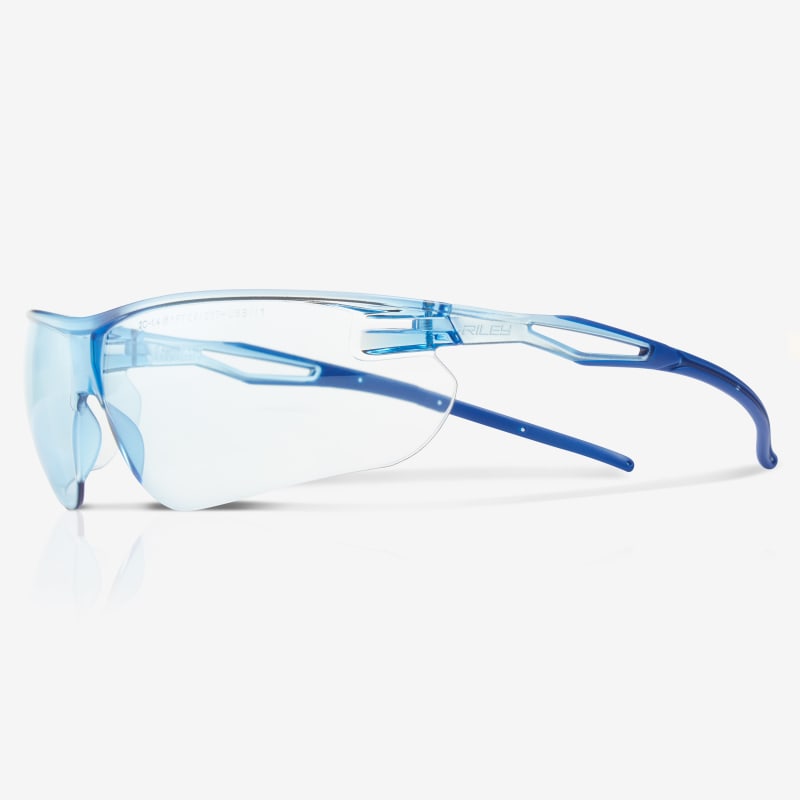

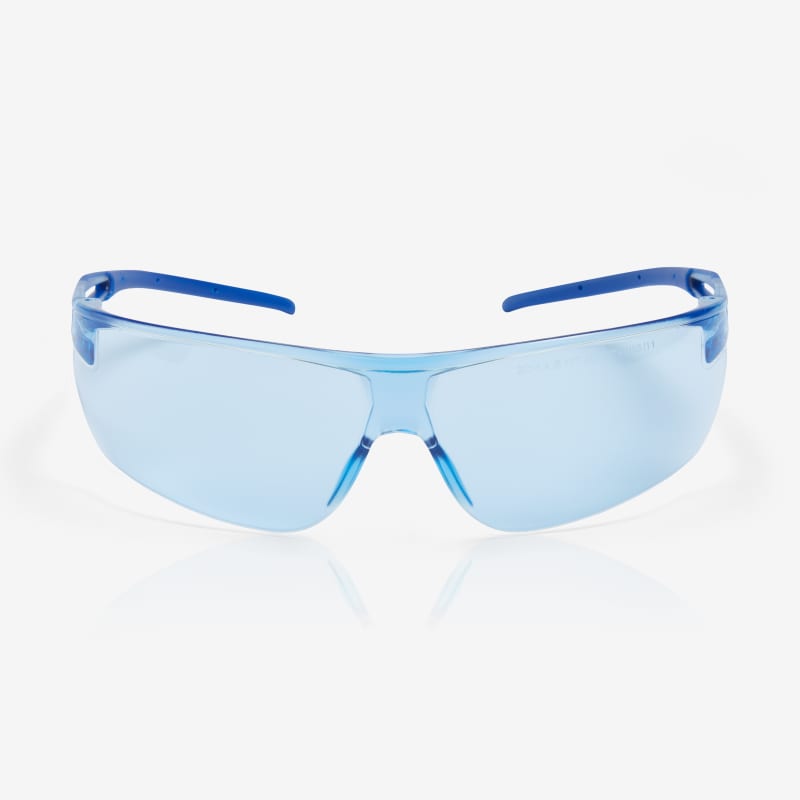

Blue
|
Blue
|
RLY00493 |
2C-1.4 1 FT CE Z87+ U6 S I 1 |
EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933 |
Impacts UV Radiation |
Arida 400 UV400 Moisture Repellent |
Product Specifics
| SKU | RLY0049 |
|---|---|
| Series | Ligera |
| Lens material | Polycarbonate |
| Temple Material | Polycarbonate, Thermoplastic Elastomers (TPE) |
| Hinge Material | Polycarbonate, Metal |
| Frame Type | Rimless Frame |
| CE | ✓ |
| EN 166 | ✓ |
Options
Selected Option Specifics (RLY00490) (RLY00491) (RLY00493)
| Lens Colour |
Clear
|
|---|---|
| Frame Colour |
Clear
|
| Protects Against | Impacts UV Radiation |
| VLT (Visible Light Transmission) | 92% |
| Lens coating | Arida 400 UV400 Moisture Repellent |
| Lens Marking | 2C-1.2 1 FT CE Z87+ U6 S IO 0 |
| Frame Marking | EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933 |
| Lens Colour |
Grey
|
|---|---|
| Frame Colour |
Grey
|
| Protects Against | Impacts UV Radiation Solar Radiation |
| VLT (Visible Light Transmission) | 14% |
| Lens coating | Arida 400 UV400 Moisture Repellent |
| Lens Marking | 5-2.5 1 FT CE Z87+ U6 L2.5 S I 2 |
| Frame Marking | EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933 |
| Lens Colour |
Blue
|
|---|---|
| Frame Colour |
Blue
|
| Protects Against | Impacts UV Radiation |
| VLT (Visible Light Transmission) | 65% |
| Lens coating | Arida 400 UV400 Moisture Repellent |
| Lens Marking | 2C-1.4 1 FT CE Z87+ U6 S I 1 |
| Frame Marking | EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933 |
Unit Dimensions
| Unit Weight | 16.5g |
|---|---|
| Unit Length | 280mm |
| Unit Height | 90mm |
Unit Dimensions
| Unit Weight | 40.7g |
|---|---|
| Unit Width | 100mm |
| Unit Length | 270mm |
| Unit Height | 60mm |
Unit Dimensions
| Unit Weight | 41g |
|---|---|
| Unit Width | 20mm |
| Unit Length | 280mm |
| Unit Height | 90mm |
Packaging
| Items per Pack | 10 |
|---|---|
| Pack height | 11cm |
| Pack width | 15cm |
| Pack length | 28cm |
| Items per Case | 200 |
| Case height | 47cm |
| Case width | 31cm |
| Case length | 85cm |
| Case weight | 11.7kg |
| Packs per Carton | 20 |
Packaging
| Items per Pack | 10 |
|---|---|
| Pack height | 11cm |
| Pack width | 15cm |
| Pack length | 28cm |
| Pack weight | 0.41kg |
| Items per Case | 200 |
| Case height | 47cm |
| Case width | 31cm |
| Case length | 85cm |
| Case weight | 11.7kg |
| Packs per Carton | 20 |
Packaging
| Items per Pack | 10 |
|---|---|
| Pack height | 11cm |
| Pack width | 15cm |
| Pack length | 28cm |
| Pack weight | 0.41kg |
| Items per Case | 200 |
| Case height | 47cm |
| Case width | 31cm |
| Case length | 85cm |
| Case weight | 11.7kg |
| Packs per Carton | 20 |
EN 166
| SKU | Lens Colour | Filter | Tint | Manufacturer Identifier | Optical Class | Mechanical Strength | Frame Mechanical Strength |
|---|---|---|---|---|---|---|---|
| RLY00490 |
Clear
|
2C UV w/ colour | 1.2 Clear or Amber | 1 For Continuous Work |
F Low-energy Impact T Extreme temperatures |
F Low-energy Impact T Extreme temperatures |
|
| RLY00491 |
Grey
|
5 Solar filter | 2.5 Grey or Revo | 1 For Continuous Work |
F Low-energy Impact T Extreme temperatures |
F Low-energy Impact T Extreme temperatures |
|
| RLY00493 |
Blue
|
2C UV w/ colour | 1.4 Blue or I/O Waterproof | 1 For Continuous Work |
F Low-energy Impact T Extreme temperatures |
F Low-energy Impact T Extreme temperatures |
ANSI/ISEA Z87.1
| SKU | Lens Colour | Impact Rating | UV Light Rating | Visible Light Filter Rating | Additional Markings | |
|---|---|---|---|---|---|---|
| RLY00490 |
Clear
|
Z87+ High Velocity Impact |
|
U6 |
S
Special Tint Lens |
|
| RLY00491 |
Grey
|
Z87+ High Velocity Impact |
|
U6 |
|
S
Special Tint Lens |
| RLY00493 |
Blue
|
Z87+ High Velocity Impact |
|
U6 |
S
Special Tint Lens |
AS/NZS 1337.1:2010
| SKU | Lens Colour | Impact Rating | Ocular Category | Outdoor Untinted | Frame License Number |
|---|---|---|---|---|---|
| RLY00490 |
Clear
|
I Increased Robustness |
|
OOutdoor Untinted |
SMK40933 |
| RLY00491 |
Grey
|
I Increased Robustness |
|
SMK40933 | |
| RLY00493 |
Blue
|
I Increased Robustness |
|
SMK40933 |
Cleaning
The lenses should be cleaned regularly.
Storage
All products must be stored in a dry and clean environment. After each use it is recommended to keep the spectacles or goggles in a microfibre pouch or rigid case.
Disposal
Pitted, scratched or damaged lenses must be replaced by replacing the complete product. If the frame is damaged also replace the complete product.
EC Compliance
Product conforms to the requirement of: UK Regulation 2016/425 on PPE, brought into UK Law and amended & Regulation (EU) 2016/425 of the European Parliament and of the Council as Personal Protective Equipment (PPE).
Type-Examination, (Module B), Certificates issued by:
UK - CCQS UK LTD. 25 Wilton Road, Pimlico, London, UK, SW1V 1LW [A.B. No. 1105].
EU - CCQS Certification Services Limited., Block 1 Blanchardstown Corporate Park, Ballycoolin Road, Blanchardstown, Dublin 15 D15 AKK1, Ireland [N.B. No. 2834]
Authorised Representative [EU]: Globus EMEA Ltd., 51 Dawson Street, Dublin, D02 AN25, Ireland.
